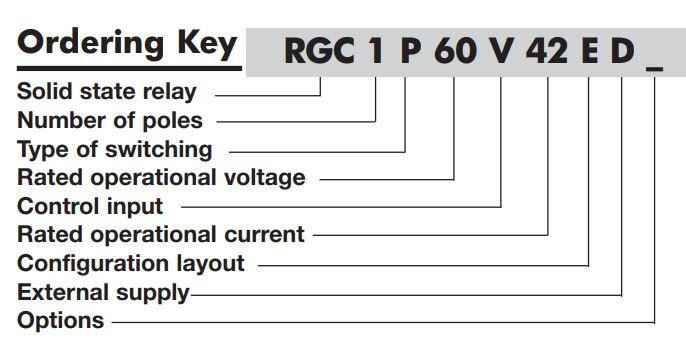

RGC1P23V42EDT
Alt: 1P-SSC V IN - PS 230V 43A 800V
SSR, Integrated Heatsink, 1-Pole, Proportional Switching, Operational Range: 85-265VAC, 800Vp, Control Input: 0-5, 1-5, 0-10VDC, Potentiometer, Rated Operational Current: 43AAC, 18000 A², Contactor, External Supply: 24VAC/DC
- Minimum Purchase:
- 1 unit

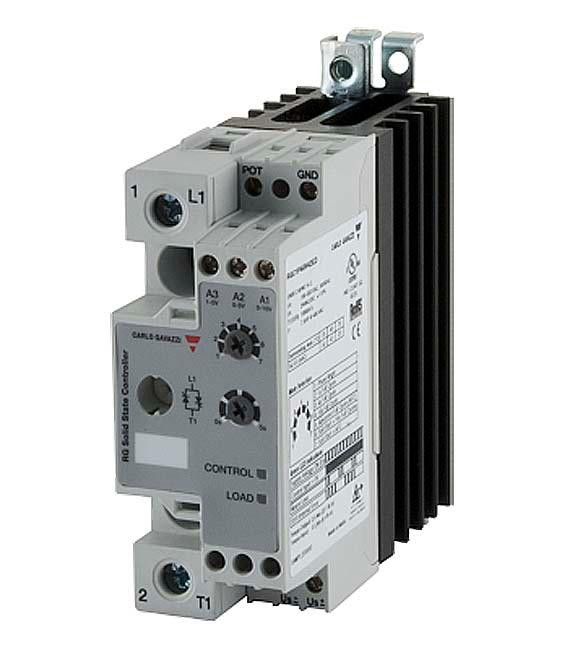

The RGC1P is a series of solid state contactors with integrated heatsink. This gives you the option to control output power of 1-phase loads with an analog control input.
Input types cover a wide range of current and voltage ranges. Local setting by an external potentiometer is possible.
Switching modes, selectable through a front knob, allow phase angle control, full cycle control, advanced full cycle control specific for short wave infrared heaters and soft starting for limiting inrush current of loads having a high temperature coefficient.
The output of the RGC1P is protected against overvoltages by means of an integrated varistor across the output. Two front LEDs indicate the status of the load and control.
Features Include:
- 1-pole analog switching AC solid state contactors
- Supply voltage range (Us): (24 VDC, -15% / +20%) (24 VAC, -15% / +15%)
- Overload Protection: up to 32 VDC/AC for 30 sec.
- Operational Frequency Range: 45 to 65 Hz
- Output Operational Voltage Range (Ue): 85 - 265 VAC, 800 Vp
- Rated operational current:43 AAC (18000 A²s) 35 mm
- Control inputs: 4-20 mA, 0-5 V, 1-5 V, 0-10 V, external potentiometer
- Integrated varistor protection on output
- Load ON LED indication
- 100kA short circuit current rating according to UL508
- DIN or panel mount
Selectable mode of operation:
- Phase Angle
- Full Cycle x1, x4, x16
- Advanced Full Cycle
- Soft Starting

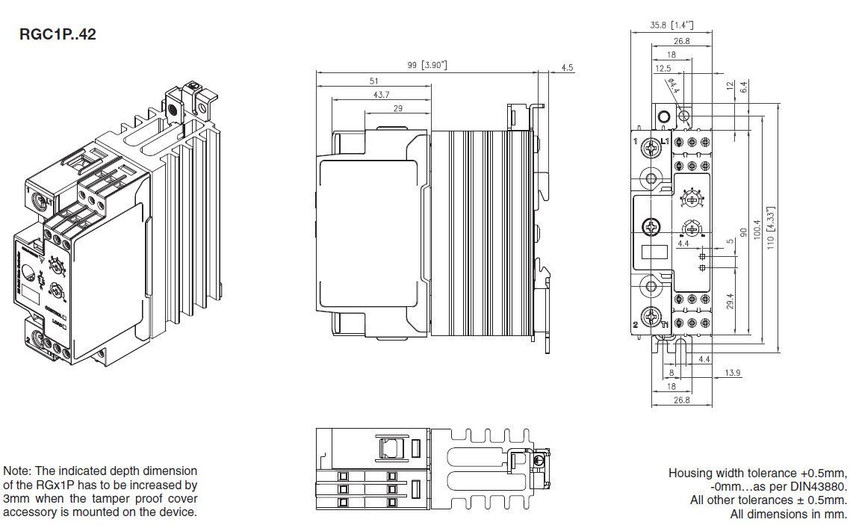

Technical Information:
