$4.03
**Tariff Update: Currently in 'Wait and See' Mode Instead of 'Panic and Overcharge' Mode!** Read the latest!
Available Now!
Available Now!
(27 in stock)
RSSDN-25A
Alt: RSS Series
$23.03

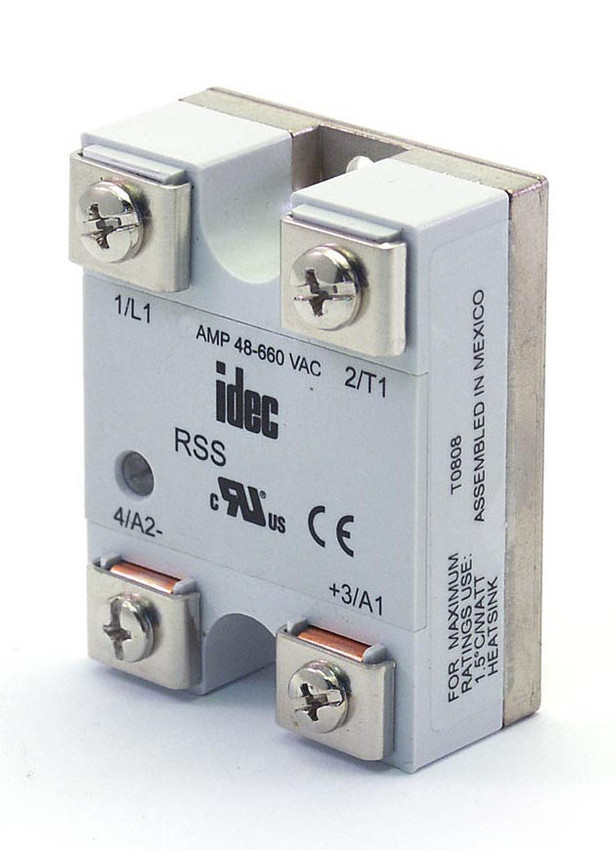

SSR, Hockey Puck, 25A, 4-32VDC Control Voltage, Zero Crossing Voltage Turn On, 48-660VAC Operating Range
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Our Idec RSS series are panel mount, hockey puck style solid state relays. They are available with AC input, 20-280VAC (RSSAN) or DC input, 3-32VDC (RSSDN).
Additional features include:
- Available from 10 to 90 amp continuous output current
- Zero crossing voltage turn-on
- Optional fingersafe cover (RSS-CVR)
- Input status LED indicator
- Dual SCR output with epoxy free design
- 1200 volt blocking voltage
- High surge capability
Specifications
Amp Rating
25 Amp
Control Voltage
4 to 32VDC
Operating Voltage
48-660VAC
Output Switching
Zero Crossing
Phase
Single Phase
All - Specific Ratings
See Spec
Series
RSS Series
Type of Relay
Hockey Puck
Warranty
1 Year
Alternate Part Number
RSS Series
Weight
0.25
Quantity
27
Accessories
