RGC1A60D32KGE
Alt: Manufacturer Minimum Order 10 Pieces
SSR, 37A, Single Phase, Zero Crossing, Integral Heatsink, 660VAC, Control 4-32VDC, Manufacturer Minimum Order 10 Pieces, Price per Piece
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 10 units
The RGC series is a single-phase zero crossing relay that has an integrated heatsink and a 37 amp rating at 40°C (also available at 43 amp rating at 25°C).

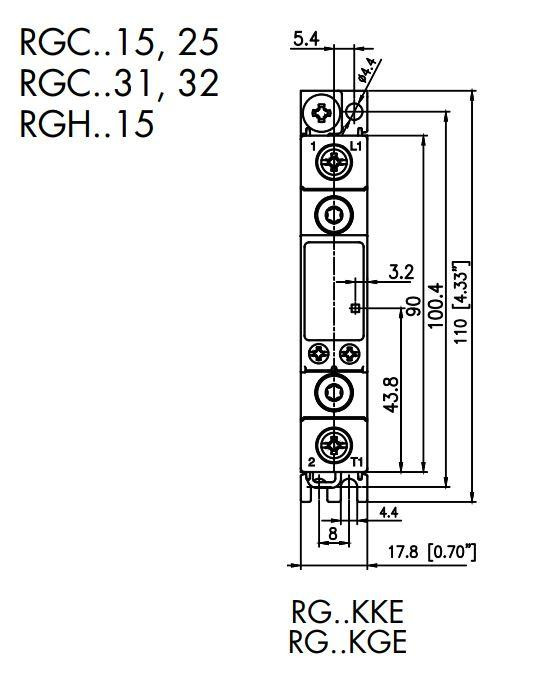

Even better, this solution fits in a 17.88mm wide platform with a depth of 103mm!
Additional information from Carlo Gavazzi:
This higher current rating on the 17.8mm compact platform is achieved through the utilization of a higher rated power chip that
has an I²t of 18000 A²s. Due to this high I²t specification, the RGC..32 can be protected against short circuits by
B curve Miniature Circuit Breakers, in applications where the UL508 SCCR rating is not required.
The main benefits of the RGC..32 include the fact it has the highest amperage rating of any 17.8 or 22.5mm
wide solid state switching devices available on the market, DIN rail spacing over 22.5 mm platform, optional
cage clamp power terminal for wires up to 3 AWG size, and energy savings due to lower power dissipation.
Features Include:
- Operational Frequency Range: 45 to 65Hz
- Power Factor: > 0.5 @ Vrated
- Touch Protection: IP20
- Rated Impulse Withstand: 6 kV (1.2/50μs) for voltage, Uimp
- Product width ranging from 17.5mm up to 70mm
- Rated operational voltage: up to 660 VAC
- Rated operational current: up to 85 AAC @ 40°C
- 18000 A2s for the I2t and 1200 Vp blocking voltage
- Control voltages: 3-32 VDC, 20-275 VAC (24-190 VDC)
- Design according to EN/IEC60947-4-2, EN/IEC60947-4-3, EN/IEC62314, UL508, CSA 22-2 No. 14-13
- Integrated voltage transient protection with varistor
- 100 kA short circuit current rating according to UL508
Technical Information:
