RGC3A60D20KKE
Alt: Minimum Order 2 Pieces, Price per Piece
$204.00

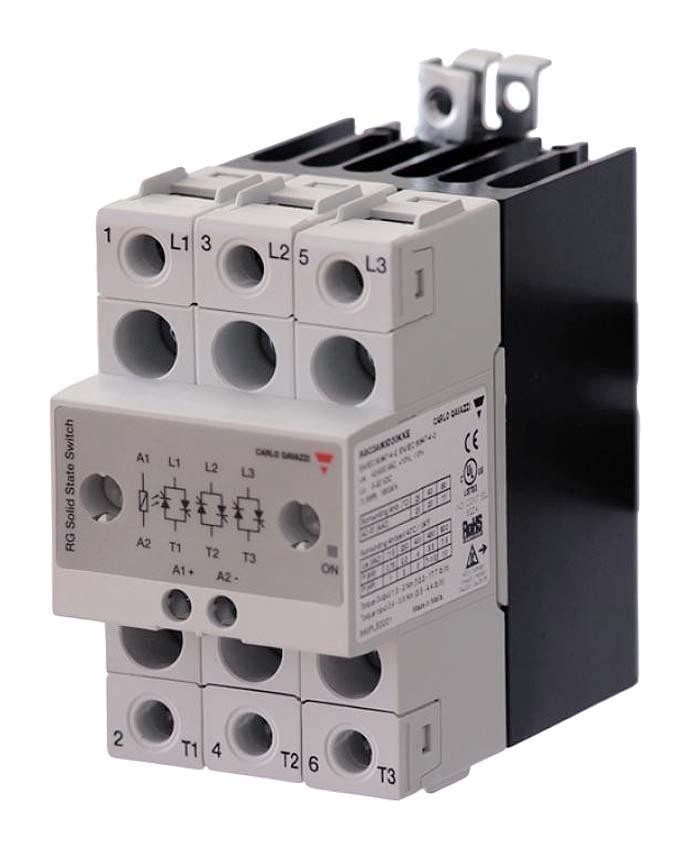

SSR, 32VDC IN 3PH 600V 20A
- Weight:
- 1.30 LBS
- Minimum Purchase:
- 2 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Specifications
Amp Rating
20 Amp
Control Voltage
4.5 to 32VDC
Operating Voltage
600VAC
Output Switching
Zero Crossing
Phase
Three Phase
All - Specific Ratings
IP20 Rated
Series
RGC Series
Type of Relay
SSR w/Heatsink
Warranty
1 Year
Alternate Part Number
Minimum Order 2 Pieces, Price per Piece
Weight
1.3
Features Include:
- Rated operational current per pole @ 40°C: 20 AAC (1800 A2s)
- Rated Voltage: 600 VAC
- Control voltage: 5 - 32 VDC
- External supply, Us: 24 VDC, 90 - 250 VAC

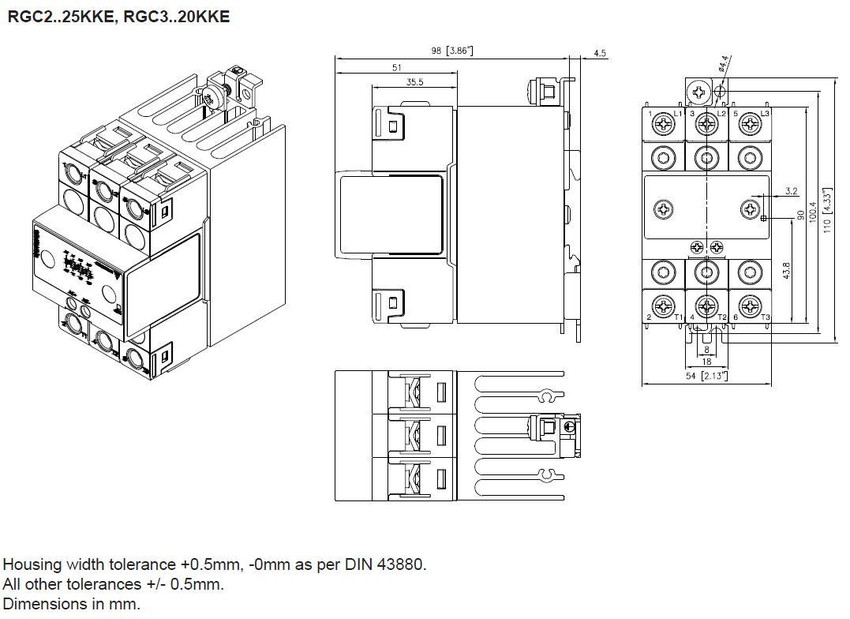

- Product Width: 54 mm
- Mounting: DIN rail (RGC3..48: Panel mount)
- Material: PA66 (UL94 V0), RAL7035 850°C, 750°C/2s according to GWIT and GWFI requirements of EN 60335-1
- Overvoltage Category: III, 6 kV (1.2/50 μs) rated impulse withstand voltage
- 3-phase zero cross switching solid state contactor for 2-pole switching
- Ratings up to 660 VAC 75 AAC/pole (RGC2A), 65 AAC/pole (RGC3A) @ TA 40°C
- Optionally integrated monitoring for SSR and load malfunction with alarm output for remote signaling with the RGC..M
