Autonics
SRH2-1440R
SSR, 3-Phase (2-Pole Control), Input 4-30VDC, 40A, Integrated Heatsink, Load 48-480VAC, Random Turn-On
$159.00
SRH3-1440R
Alt: SRH Series
$170.00
SSR, 3-Phase (3-Pole), Input 4-30VDC, 40A, Integrated Heatsink, Load 48-480VAC, Random Turn-On
- Weight:
- 1.98 LBS
- Minimum Purchase:
- 1 unit
Description

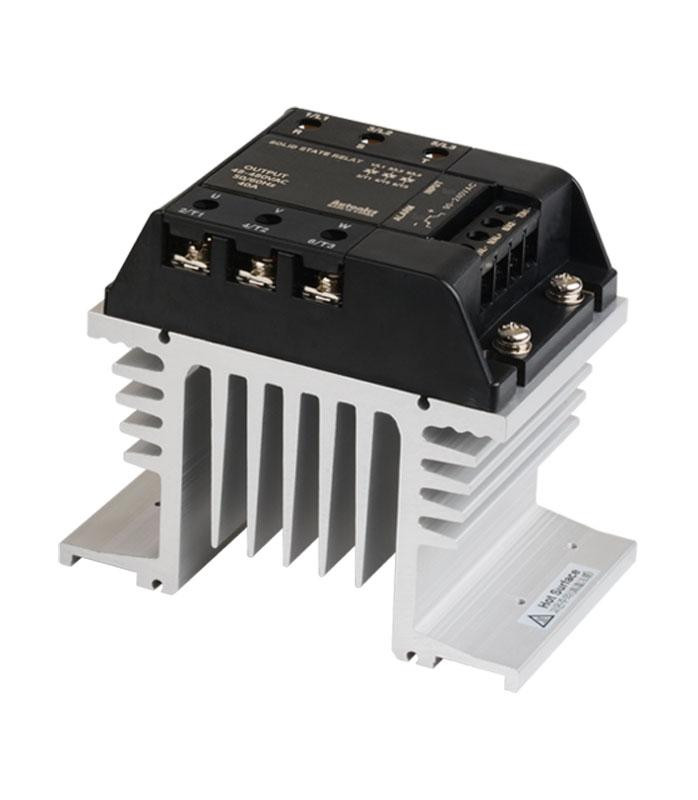

Our Autonics SRH2 and SRH3 series are solid state relays with removable integrated heatsinks.
The SRH2 series can control 2-phase, the SRH3 can control 3-phase.
Features Include:
- Two mounting hole types and sizes
- Alarm output (overheating): Alarm output indicator (red LED), disconnect standard output, alarm output
- Dielectric Strength: 4000 VAC (also 2,500VAC model)
- High heat dissipation efficiency with ceramic PCB and integrated heatsink
- Zero cross turn-on, random turn-on models available
- Input indicator (green LED)
- Various mounting methods (DIN rail, panel) - SRH2/SRH3 series *DIN rail mount not available for 50 A, 75 A load current models
Need more information? Find product documentation below:
- Autonics SR2/SR3 Series Solid State Relay Technical Information
- Autonics SR2/SR3 Series Solid State Relay Instruction Manual
Learn more about Autonics' SR(H)2/3 Series Solid State Relays here!
Accessories
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics
SR2-1440R
SSR, 3-Phase (2-Pole Control), Input 4-30VDC, 40A, Detachable Heatsink, Load 48-480VAC, Random Turn-On
$112.00
Autonics

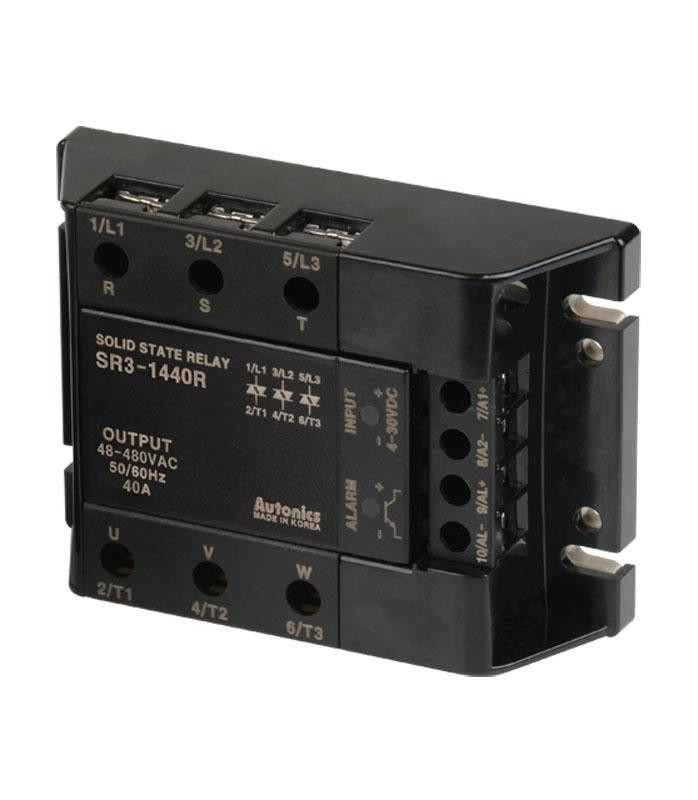

SR3-1440R
SSR, 3-Phase (3-Pole), Input 4-30VDC, 40A, Detachable Heatsink, Load 48-480VAC, Random Turn-On
$129.00
Autonics
SRH3-4440
SSR, 3-Phase (3-Pole), Input 90-240VAC, 40A, Integrated Heatsink, Load 48-480VAC, Zero Cross Turn-On
$170.00
Autonics
SRH3-4275
SSR, 3-Phase (3-Pole), Input 90-240VAC, 75A, Integrated Heatsink, Load 24-240VAC, Zero Cross Turn-On
$200.00
Autonics
SRH3-4215
SSR, 3-Phase (3-Pole), Input 90-240VAC, 15A, Integrated Heatsink, Load 24-240VAC, Zero Cross Turn-On
$120.00
Autonics
SRH3-4450
SSR, 3-Phase (3-Pole), Input 90-240VAC, 50A, Integrated Heatsink, Load 48-480VAC, Zero Cross Turn-On
$218.00
Autonics
SRH3-1215
SSR, 3-Phase (3-Pole), Input 4-30VDC, 15A, Integrated Heatsink, Load 24-240VAC, Zero Cross Turn-On
$120.00
Autonics
SRH3-1475
SSR, 3-Phase (3-Pole), Input 4-30VDC, 75A, Integrated Heatsink, Load 48-480VAC, Zero Cross Turn-On
$243.00
