Autonics
SRH3-1415R
SSR, 3-Phase (3-Pole), Input 4-30VDC, 15A, Integrated Heatsink, Load 48-480VAC, Random Turn-On
$148.00
**Tariff Update: Currently in 'Wait and See' Mode Instead of 'Panic and Overcharge' Mode!** Read the latest!
SRH3-1415
Alt: SRH Series
$148.00
SSR, 3-Phase (3-Pole), Input 4-30VDC, 15A, Integrated Heatsink, Load 48-480VAC, Zero Cross Turn-On
- Weight:
- 1.98 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Choose Your Motor Starter Solution
Build your motor starter system with knowledgeable guidance on selecting your components, including starters, contactors, relays, and accessories.
Description
Our Autonics SRH2 and SRH3 series are solid state relays with removable integrated heatsinks.
The SRH2 series can control 2-phase, the SRH3 can control 3-phase.
Specifications
Amp Rating
15 Amp
Control Voltage
4 to 30VDC
Operating Voltage
480VAC
Output Switching
Zero Crossing
Phase
Three Phase
All - Specific Ratings
See Spec
Series
SRH Series
Type of Relay
SSR w/Heatsink
Warranty
3 Years
Alternate Part Number
SRH Series
Weight
1.98
Features Include:

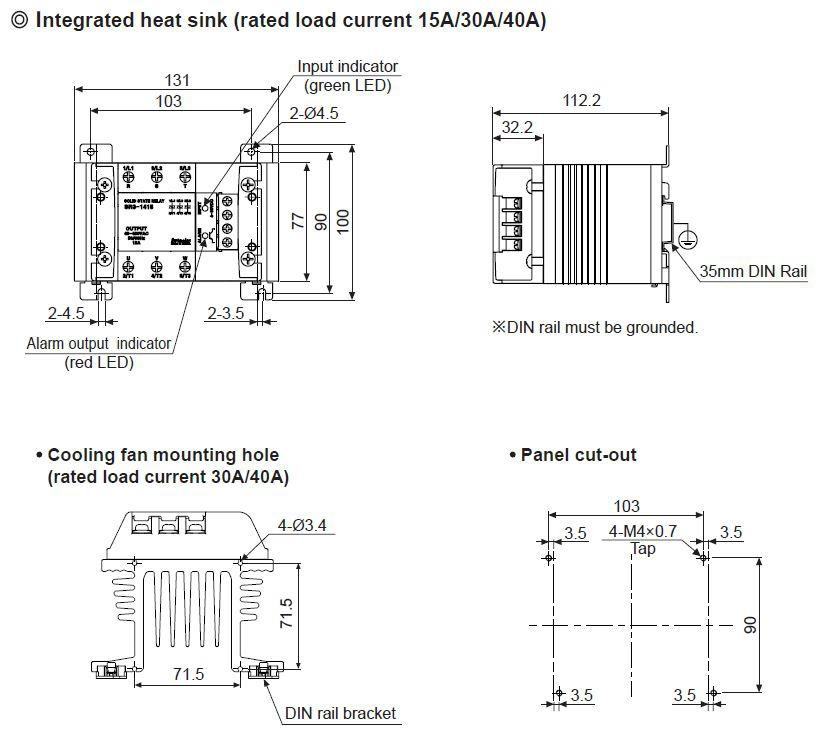

- Two mounting hole types and sizes
- Alarm output (overheating): Alarm output indicator (red LED), disconnect standard output, alarm output
- Dielectric Strength: 4000 VAC (also 2,500VAC model)
- High heat dissipation efficiency with ceramic PCB and integrated heatsink
- Zero cross turn-on, random turn-on models available
- Input indicator (green LED)
- Various mounting methods (DIN rail, panel) - SRH2/SRH3 series *DIN rail mount not available for 50 A, 75 A load current models
