Autonics
SRH3-1475
SSR, 3-Phase (3-Pole), Input 4-30VDC, 75A, Integrated Heatsink, Load 48-480VAC, Zero Cross Turn-On
$243.00
SRH3-1215
Alt: SRH Series
$120.00
SSR, 3-Phase (3-Pole), Input 4-30VDC, 15A, Integrated Heatsink, Load 24-240VAC, Zero Cross Turn-On
- Weight:
- 1.98 LBS
- Minimum Purchase:
- 1 unit
Description

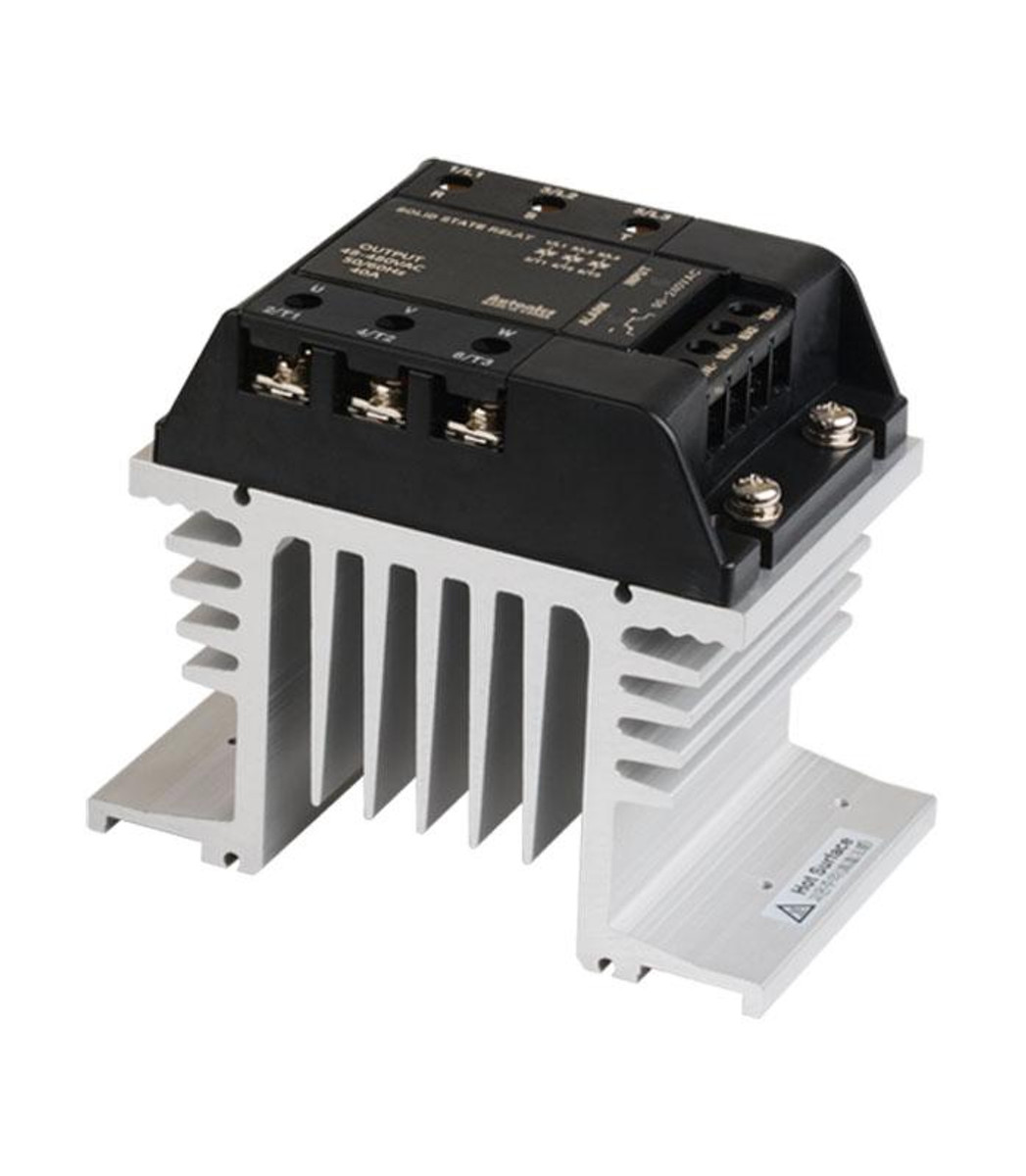

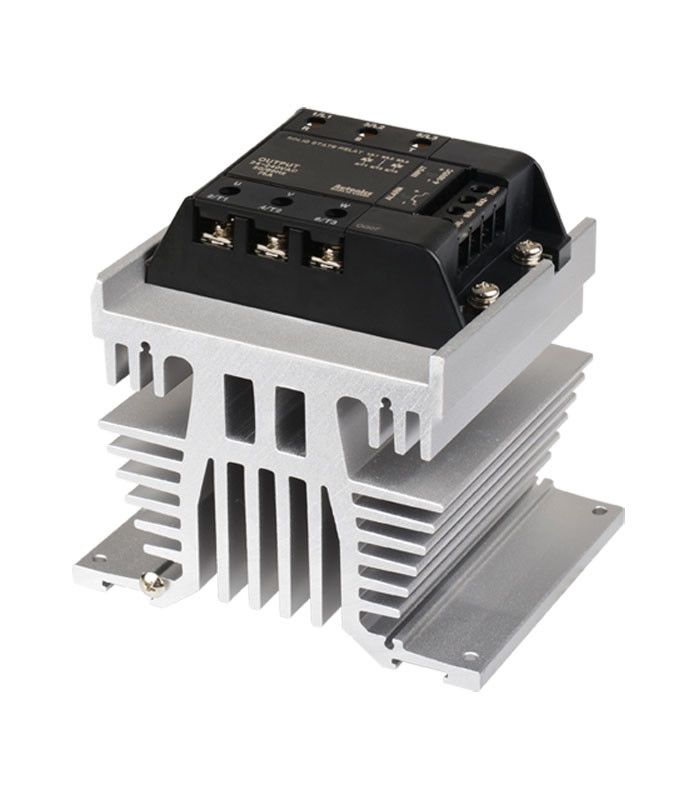

Our Autonics SRH2 and SRH3 series are solid state relays with removable integrated heatsinks.
The SRH2 series can control 2-phase, the SRH3 can control 3-phase.
Specifications
Amp Rating
15 Amp
Control Voltage
4 to 30VDC
Operating Voltage
240VAC
Output Switching
Zero Crossing
Phase
Three Phase
All - Specific Ratings
See Spec
Series
SRH Series
Type of Relay
SSR w/Heatsink
Warranty
3 Years
Alternate Part Number
SRH Series
Weight
1.98
Features Include:

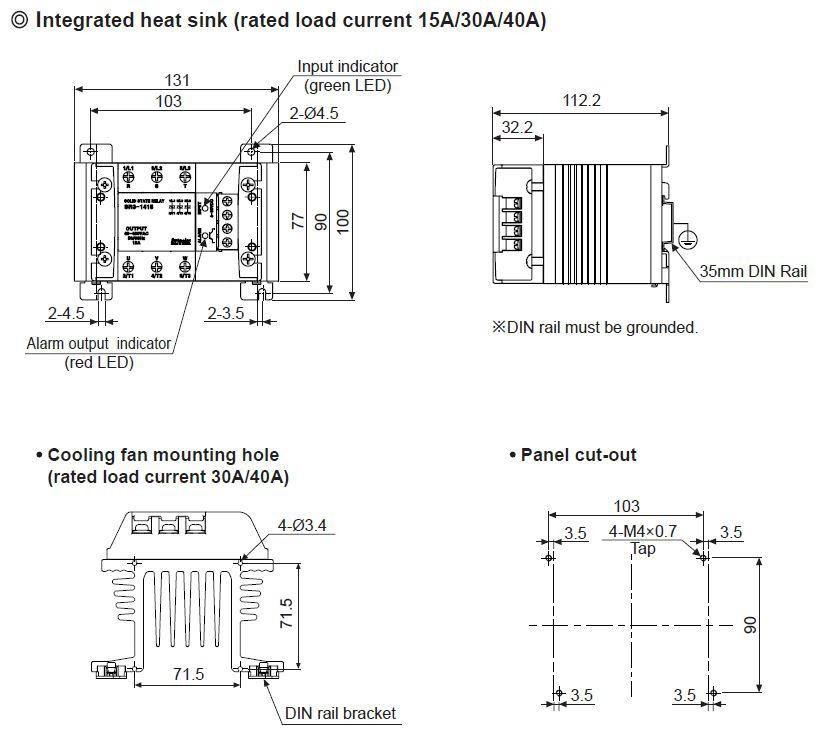

- Two mounting hole types and sizes
- Alarm output (overheating): Alarm output indicator (red LED), disconnect standard output, alarm output
- Dielectric Strength: 4000 VAC (also 2,500VAC model)
- High heat dissipation efficiency with ceramic PCB and integrated heatsink
- Zero cross turn-on, random turn-on models available
- Input indicator (green LED)
- Various mounting methods (DIN rail, panel) - SRH2/SRH3 series *DIN rail mount not available for 50 A, 75 A load current models
