Autonics
SR2-2450
SSR, 3-Phase (2-Pole Control), Input 24VAC, 50A, Detachable Heatsink, Load 48-480VAC, Zero Cross Turn-On
$180.00
SR2-1250
Alt: SR2 Series
$111.00
SSR, 3-Phase (2-Pole Control), Input 4-30VDC, 50A, Detachable Heatsink, Load 24-240VAC, Zero Cross Turn-On
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Our Autonics SR2 and SR3 series are are solid state relays with detachable heatsink!
The solid state relays can control 2-phase (SR2) or 3-phase loads (SR3) and have two mounting hole types for compatibility with various types of heatsinks.
These relays also features alarm output and are available in 24 VAC low voltage models. Select models feature high dielectric strength of up to 4000 VAC.
If you are looking for a series with integrated heatsinks, please see the Autonics SRH series.
Specifications
Amp Rating
50 Amp
Control Voltage
4 to 30VDC
Operating Voltage
240VAC
Output Switching
Zero Crossing
Phase
Three Phase
All - Specific Ratings
See Spec
Series
SR2 Series
Type of Relay
SSR w/Heatsink
Warranty
3 Years
Alternate Part Number
SR2 Series
Weight
1
Features Include:
- Two mounting hole types and sizes
- Alarm output (overheating): Alarm output indicator (red LED), disconnect standard output, alarm output
- Dielectric Strength: 4000 VAC (also 2,500VAC model)
- High heat dissipation efficiency with ceramic PCB and integrated heatsink
- Zero cross turn-on, random turn-on models available
- Input indicator (green LED)
- Various mounting methods (DIN rail, panel) - SRH2/SRH3 series *DIN rail mount not available for 50 A, 75 A load current models
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics
SR2-2415
SSR, 3-Phase (2-Pole Control), Input 24VAC, 15A, Detachable Heatsink, Load 48-480VAC, Zero Cross Turn-On
$96.00
Autonics
SR2-4475
SSR, 3-Phase (2-Pole Control), INP 90-240VAC, 75A, Detachable Heatsink, Load 48-480VAC, Zero Cross Turn-On
$192.00
Autonics
SR2-1450R
SSR, 3-Phase (2-Pole Control), Input 4-30VDC, 50A, Detachable Heatsink, Load 48-480VAC, Random Turn-On
$180.00
Autonics
SR2-1450
SSR, 3-Phase (2-Pole Control), Input 4-30VDC, 50A, Detachable Heatsink, Load 48-480VAC, Zero Cross Turn-On
$180.00
Autonics
SR2-4250
SSR, 3-Phase (2-Pole Control), INP 90-240VAC, 50A, Detachable Heatsink, Load 24-240VAC, Zero Cross Turn-On
$111.00
Autonics
SR2-4215
SSR, 3-Phase (2-Pole Control), INP 90-240VAC, 15A, Detachable Heatsink, Load 24-240VAC, Zero Cross Turn-On
$68.00
Autonics
SR2-1215
SSR, 3-Phase (2-Pole Control), Input 4-30VDC, 15A, Detachable Heatsink, Load 24-240VAC, Zero Cross Turn-On
$59.00
Autonics

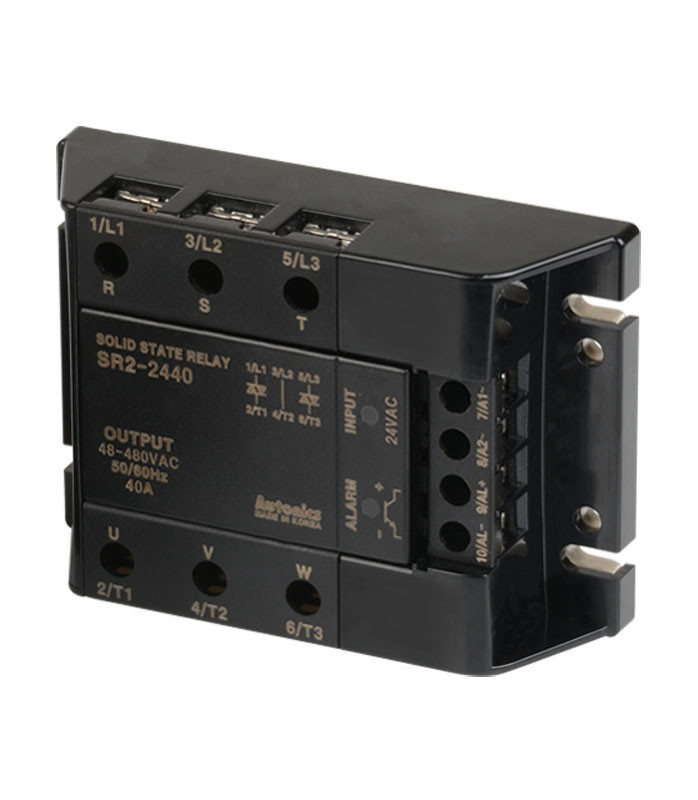

SR2-2440
