Autonics
SRH2-1450R
SSR, 3-Phase (2-Pole Control), Input 4-30VDC, 50A, Integrated Heatsink, Load 48-480VAC, Random Turn-On
$207.00
SRH2-4215
Alt: SRH Series
$109.00
SSR, 3-Phase (2-Pole Control), INP 90-240VAC, 15A, Integrated Heatsink, Load 24-240VAC, Zero Cross Turn-On
- Weight:
- 1.98 LBS
- Minimum Purchase:
- 1 unit
Description

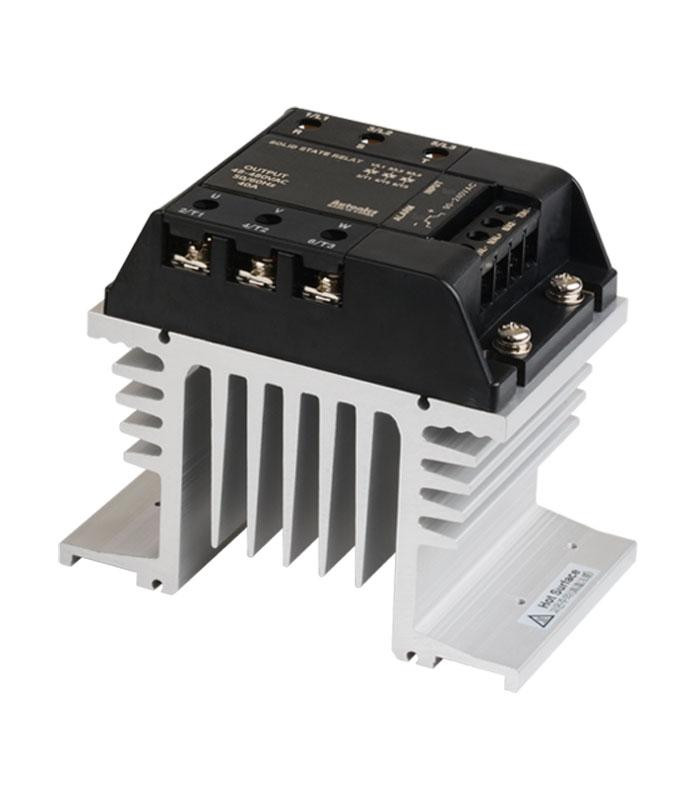

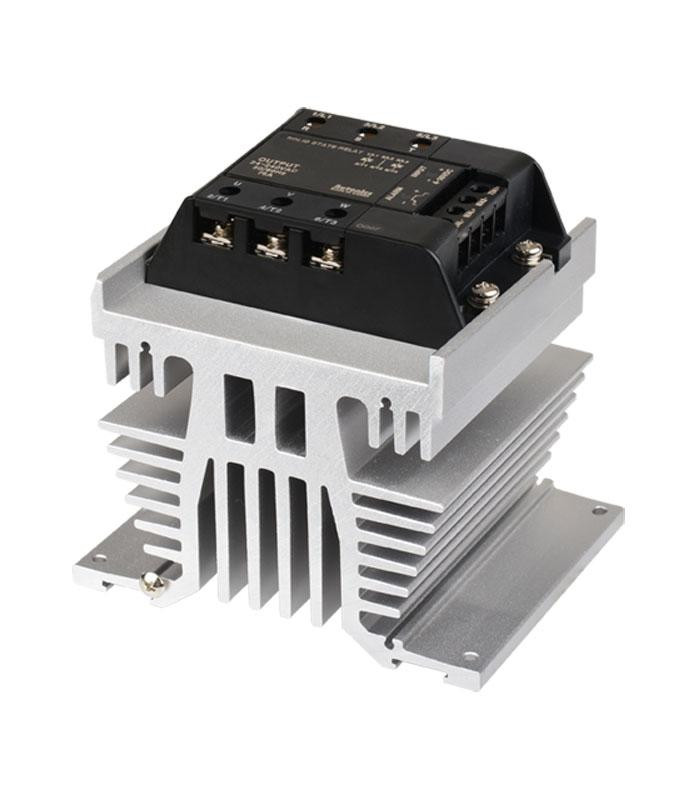

Our Autonics SRH2 and SRH3 series are solid state relays with removable integrated heatsinks.
The SRH2 series can control 2-phase, the SRH3 can control 3-phase.
Features Include:
- Two mounting hole types and sizes
- Alarm output (overheating): Alarm output indicator (red LED), disconnect standard output, alarm output
- Dielectric Strength: 4000 VAC (also 2,500VAC model)
- High heat dissipation efficiency with ceramic PCB and integrated heatsink
- Zero cross turn-on, random turn-on models available
- Input indicator (green LED)
- Various mounting methods (DIN rail, panel) - SRH2/SRH3 series *DIN rail mount not available for 50 A, 75 A load current models
Need more information? Find product documentation below:
- Autonics SR2/SR3 Series Solid State Relay Technical Information
- Autonics SR2/SR3 Series Solid State Relay Instruction Manual
Learn more about Autonics' SR(H)2/3 Series Solid State Relays here!
