Pizzato
SR BD41AN4-B01F

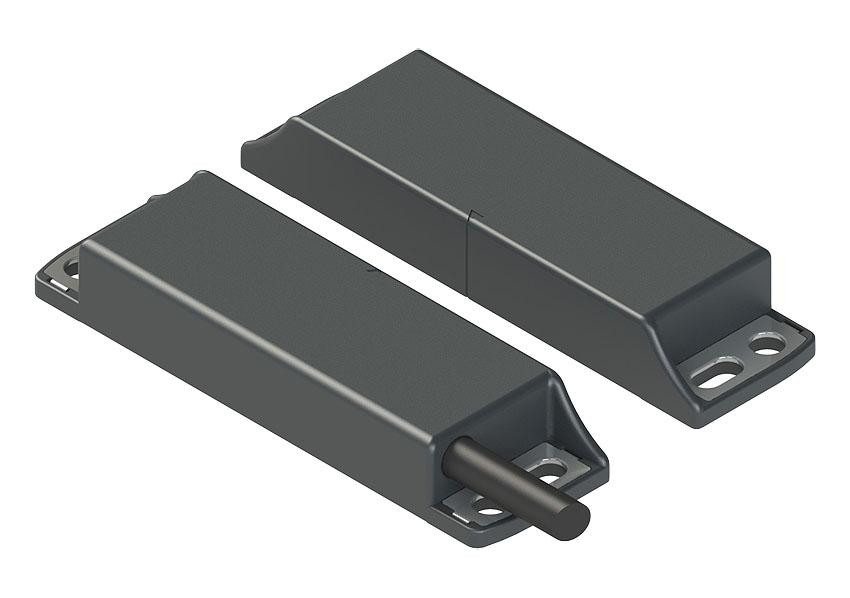

Magnetic Safety Sensor Complete with Actuator, 1NO+2NC, 5mm Actuation Distance
$94.07
SR BD41AN4-B02F
Alt: SR B Series
$96.28
Magnetic Safety Sensor Complete with Actuator
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Our Pizzato SR B series of coded magnetic safety sensors are rated IP67 (EN 60529) and IP69K (ISO 20653).
- Output contacts that are available: 2NC, 1NO+2NC or 1NO+1NC
- Stainless steel fixing plates
- Insensitive to dirt
- IP67 and IP69K
- Coded actuator
- Technopolymer housing
- M8 or M12 connector

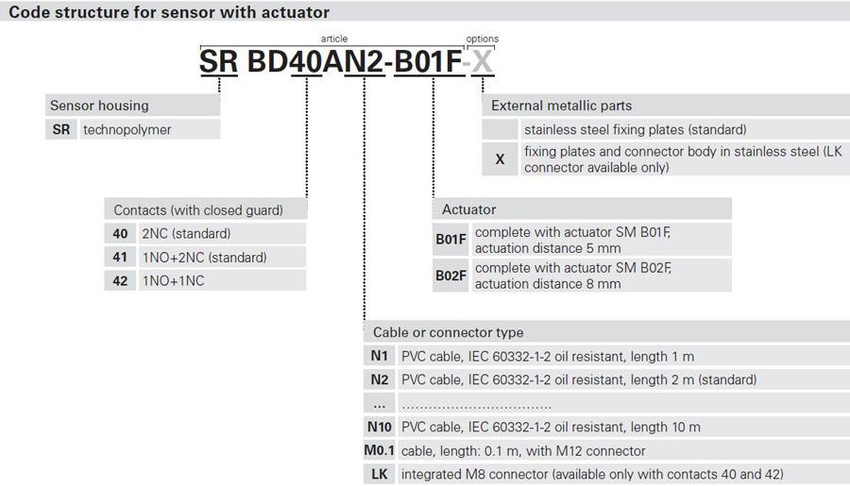

This series is available as a complete set (sensor and actuator), a single sensor or just the actuator:
- -B01F is complete with actuator SM B01F, actuation distance 5mm
- -B02F is complete with actuator SM B02F, actuation distance 8mm
- Single actuators may be purchased as well: SM B01F (5mm actuation distance) or SM B02F (8mm actuation distance)
Features Include:
- Housing: Polymer housing, with metal fixing plates
- Protection Degrees: IP67 and IP69K
- Contacts: 1NO+2NC
- Type of cable or connector: PVC cable
- Actuator: With actuator
- Actuation without mechanical contact
- Stainless steel fixing plates
- Insensitive to dirt
Technical Information:
