SR BD40AN3-B02F

SR BD40AN3-B02F

Alt: SR B Series

$75.60

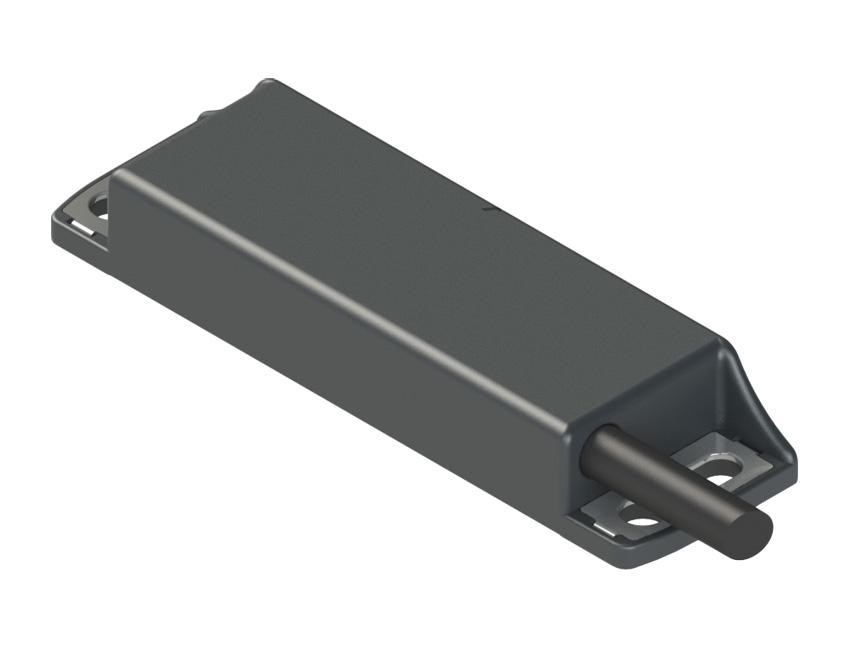

Magnetic Safety Sensor Complete with Actuator

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Our Pizzato SR B series of coded magnetic safety sensors are rated IP67 (EN 60529) and IP69K (ISO 20653).

  • Output contacts that are available: 2NC, 1NO+2NC or 1NO+1NC
  • Stainless steel fixing plates
  • Insensitive to dirt
  • IP67 and IP69K
  • Coded actuator
  • Technopolymer housing
  • M8 or M12 connector

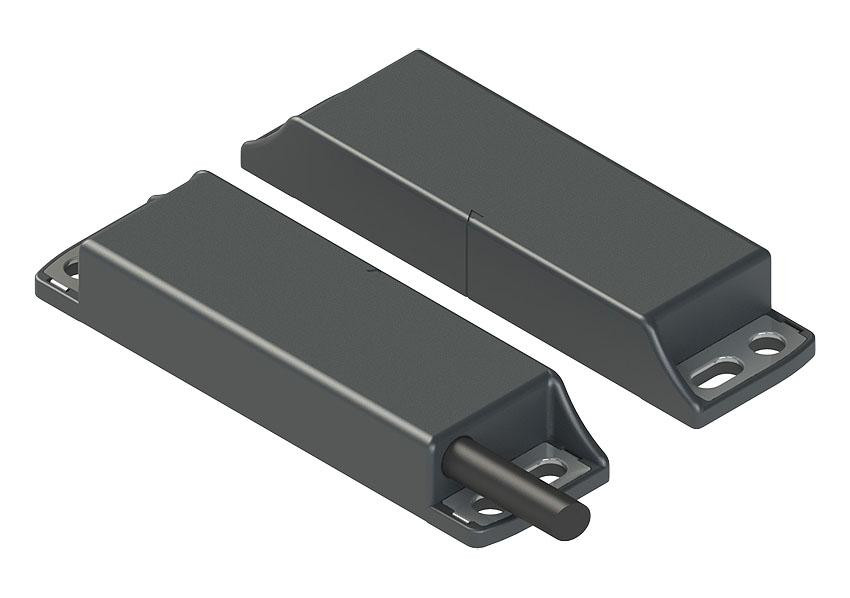

This series is available as a complete set (sensor and actuator), a single sensor or just the actuator:

  • -B01F is complete with actuator SM B01F, actuation distance 5mm
  • -B02F is complete with actuator SM B02F, actuation distance 8mm
  • Single actuators may be purchased as well: SM B01F (5mm actuation distance) or SM B02F (8mm actuation distance)





Series Features Include:

  • Housing: Technopolymer housing, with metal fixing plates
  • Protection Degrees: IP67 and IP69K
  • Contacts: 2NC, 1NO+2NC or 1NC + 1NO (with door closed)
  • Coded actuator
  • Actuation without mechanical contact
  • Stainless steel fixing plates
  • Insensitive to dirt
  • Versions with M8 or M12 connector
  • *Image is representative only
