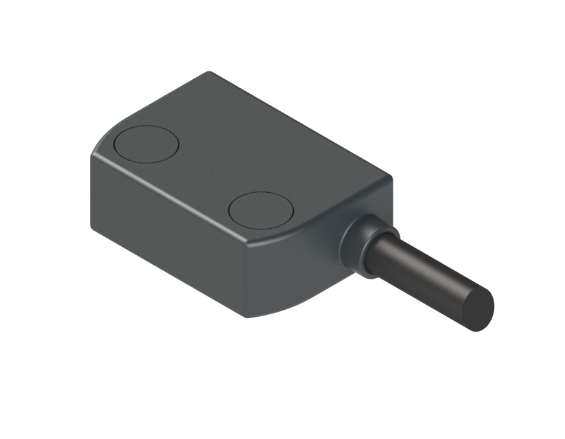

Safety Coded Magnetic Sensor with Actuator
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description

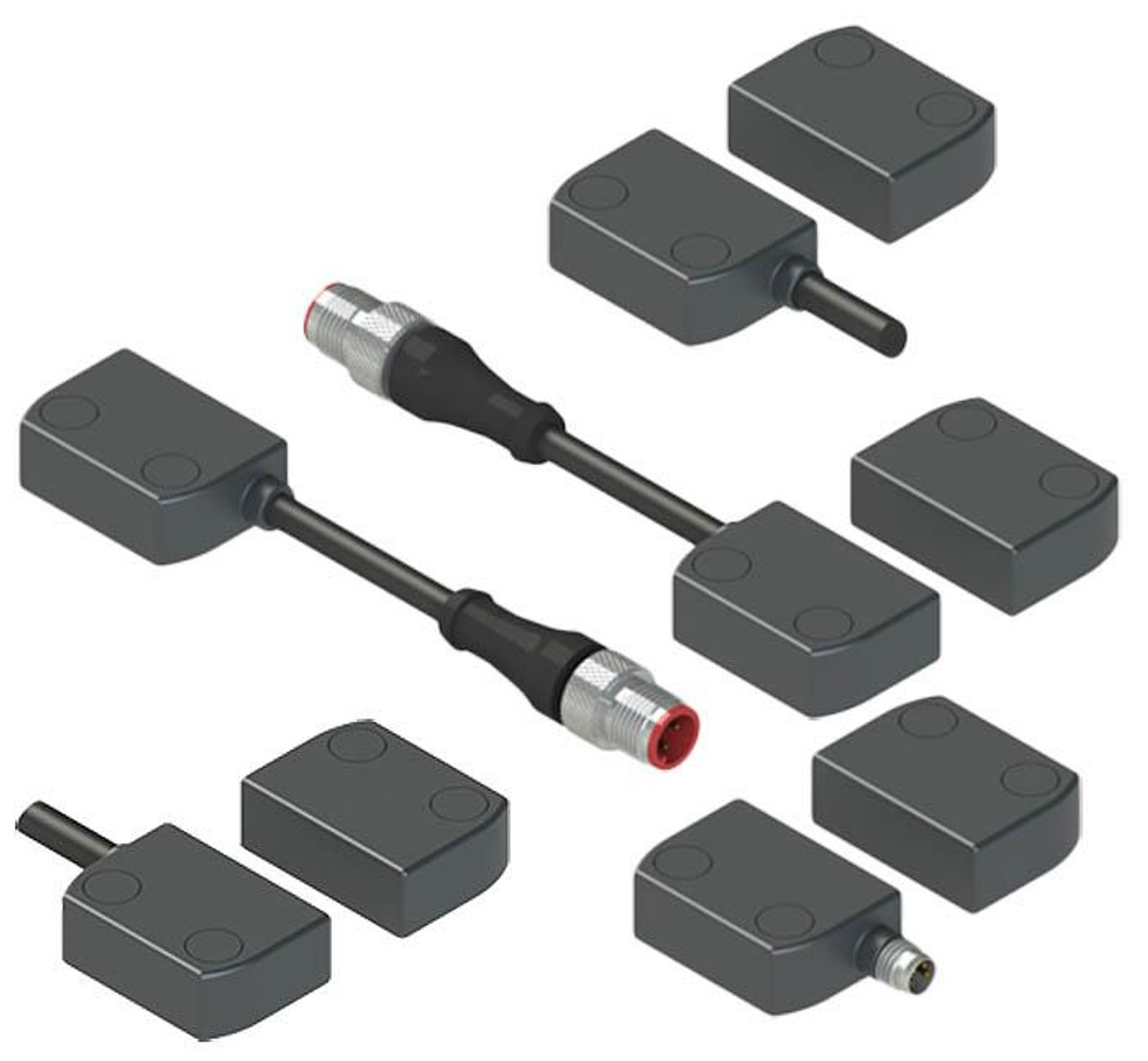

Our Pizzato SR A series of coded magnetic safety sensors are rated IP67 (EN 60529) and IP69K (ISO 20653).
- Output contacts that are available: 2NC, 1NO+2NC or 1NO+1NC
- Insensitive to dirt
- IP67 and IP69K
- Coded actuator
- Technopolymer housing
- M8 or M12 connector
This series is available as a complete set (sensor and actuator), a single sensor or just the actuator:
- -A01N is complete with actuator SM A01N, actuation distance 5mm
- Single actuators may be purchased as well: SM A01N (5mm actuation distance)
Series Features Include:
- Housing: Technopolymer housing
- Contacts: 2NC, 1NC+2NC, or 1NC+1NO
- Type of cable or connector: PVC cable, 4x0,25 mm²
- Coded Actuator
- Protection degrees: IP67 and IP69K
- Version with M8 or M12 connector
- Insensitive to dirt
