$159.20
PU-4E
Alt: PU Series
$135.20
Speed Sensor/Speed Pickup, Indoor, 2ppr, 24VDC, Reliable Way To Monitor Speed
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Dart Controls has proudly designed and manufactured their products in Zionsville, Indiana since 1963. They offer the broadest range of electronic motor speed controls, rated up to 3hp, in the industry!
Their products include analog and digital DC controls, their easy to use EZ VFD as well a a number of other controls and accessories.

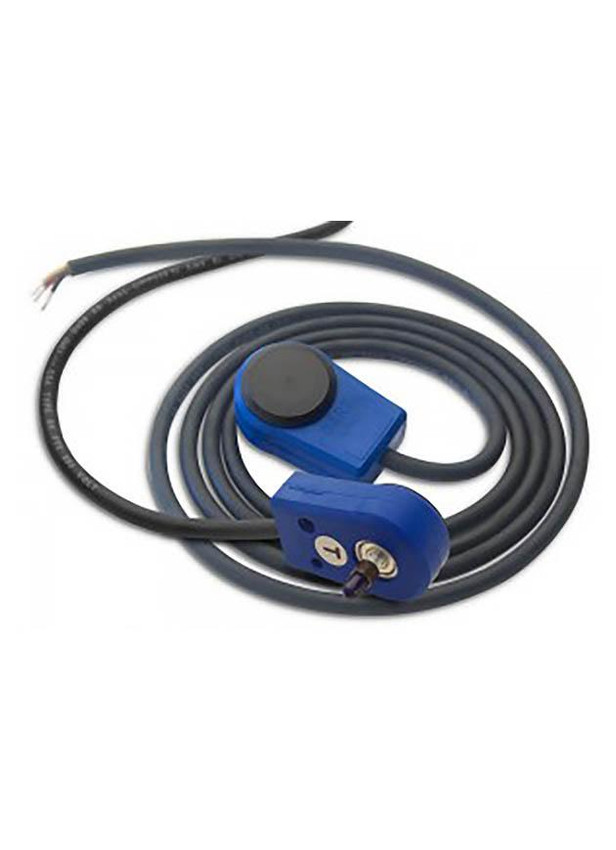

- PU-E Series pick-up mounts directly on shaft being monitored using single 10-32 screw.
- Maximum speed: 5,000 RPM or 50,000 pulses per minute.
- Supply voltage +4.5 VDC to +24 VDC.
- NPN open collector output signal with built-in pull-up resistor. Square wave output,signal voltage equals supply voltage. +5 VDC to 24 VDC supply voltage. Current sink: 50mA absolute maximum.
- Operating temperature: -10° C. to +45° C.
- Stainless steel ball bearing.
- Compact housing of molded "Santoprene" plastic rubber.
- Output cable-6‘ rubber jacketed, 3-wire 18AWG conductors; red wire: +VDC supply input black wire: Common white wire: Signal A brown wire: Signal B (model PU-20EQUAD only)
- Recommended for use with MD10P, MD3P and MD3E where pickup is turning 2500rpm or less
