55AC15C
Dart Controls

55AC15C

Alt: AC Speed Control, Chassis

$135.20

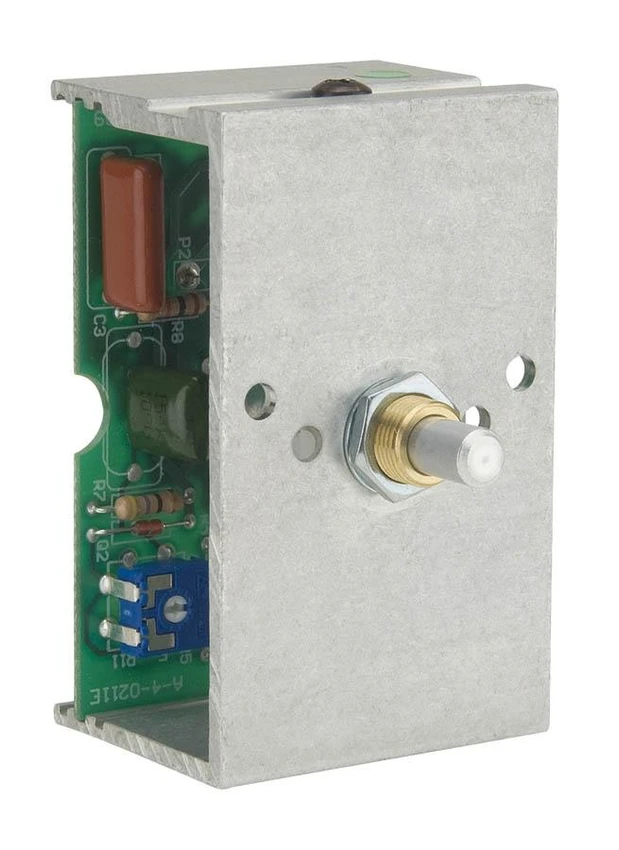

AC Speed Control, Chassis/No Enclosure, 120VAC Supply, 15A, .25" Male QC Supply Connection and Output Connection, Includes Mounting Hardware

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Please note that this series does not work with capacitor start motors, read more below.
Description

The 55/57 series are cost-effective and compact triac variable AC voltage supplies that are manufactured especially for the vibratory feeder, fan, pump, heating, and lighting industries.

All models feature single-phase AC input and fully variable AC output. The enclosed version comes with a rugged housing, power on/off switch, power on indicator lamp, front access fuse, as well as convenient input and output cords and plugs.

The heart of the control is a triac fired in a manner to adjust phase and thereby vary speed. The 55 Series is designed to work with shaded pole, permanent split capacitor, permanent split-phase, universal motors or any resistive load. It is not designed for capacitor start motors.

 It also can be used with heating elements as a simple temperature control. Open chassis models include speed pot knob and dial.

The 55/57 Series AC Motor Speed control is a triac based single phase variable voltage supply. It is used primarily with single phase AC motors and universal motors that ARE NOT CAPACITOR START designs.

  • 55AC10E- Enclosed, NEMA 1, 120V, 10 Amp, 1hp
  • 55AC15E- Enclosed, NEMA 1, 120V, 15 Amp, 1.5hp
  • 57AC10E- Enclosed, NEMA 1, 240V, 10 Amp, 2hp
  • 57AC15E- Enclosed, NEMA 1, 240V, 15 Amp, 2.5hp
  • Change E to C on any of the above for the chassis versions

Features Include:

  • Variable AC voltage supply
  • Available in 120VAC single phase input or 240VAC single phase input
  • Choose chassis style or enclosed
    • 55AC10C is the chassis version (no enclosure)
    • 55AC10E is the enclosed version and comes with rugged housing, power on/off switch, power on indicator lamp, front access fuse and convenient input/output cords and plugs
  • All models feature single phase AC input and fully variable AC output
  • Temperature ...-10° to +45° C.
  • AC Input Voltage ...±10% Rated Line Voltage
  • Input Frequency ... 50/60 Hz.
  • Designed to work with shaded pole, permanent split capacitor, permanent split-phase, universal motors or any resistive load
  • Great for fan, pump, heating, lighting and vibratory feeder industries
  • Please note: this series is not designed for capacitor start motors
