Dart Controls
15DV1A
DC Speed Control, Open Chassis, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1/50 to 1/6hp 120VAC/90VDC, 1/25 to 1/3hp 240VAC/180VDC, 2ADC Current
$111.20
15DV1A-TS
Alt: DC Speed Control, Open Chassis, Non-Cancellable, No Returns
$118.40
DC Speed Control, Open Chassis, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1/50 to 1/6hp 120VAC/90VDC, 1/25 to 1/3hp 240VAC/180VDC, 2ADC Current, Terminal Strip to Allow for Remote Installation of Speed Pot, NCNR
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Dart Conrol's general purpose, economical variable speed control is ideal for small DC and universal motor applications. Features include: dual input voltages of 12/24 VAC or 120/240 VAC with DC output current rating of 2 Amps, adjustable trimpot settings, and quick connect terminal pins. The 15 Series is available in two compact panel mount styles, a NEMA 1 (15DVP) and NEMA 4/12 (15DVE) enclosed model.
- Dual voltage models of 12/24 VAC or 120/240 VAC input
- Full wave bridge power supply
- Adjustable Minimum speed
- Adjustable Maximum speed
- Adjustable IR Compensation
- Fixed Acceleration
- 5K ohm speed pot, knob & dial included
- 25:1 speed range
- 1% speed regulation
- Overload capacity of 200% for 1 minute
- Transient voltage protection
- AC line fuse (Enclosed)
- Power on/off switch and light (Enclosed)
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Iboco
TS-0506G
Wire Duct, Solid Wall, Grey, 0.5 x 0.625" (W x H), Minimum Order of 120' Per Carton (20 Lengths), Price per Foot
$3.40
Iboco
TS-4030G
Wire Duct, Solid Wall, 4 x 3" (W x H), Minimum Order of 48' Per Carton (8 Lengths), Price per Foot
$10.93
Iboco
TS-2230G
Wire Duct, Solid Wall, Grey, 2.25 x 3" (W x H), Minimum Order of 72' Per Carton (12 Lengths), Price per Foot
$8.34
Iboco
TS-1530G
Wire Duct, Solid Wall, Grey, 1.5 x 3" (W x H), Minimum Order of 96' Per Carton (16 Lengths), Price per Foot
$7.77
Iboco
TS-1010G

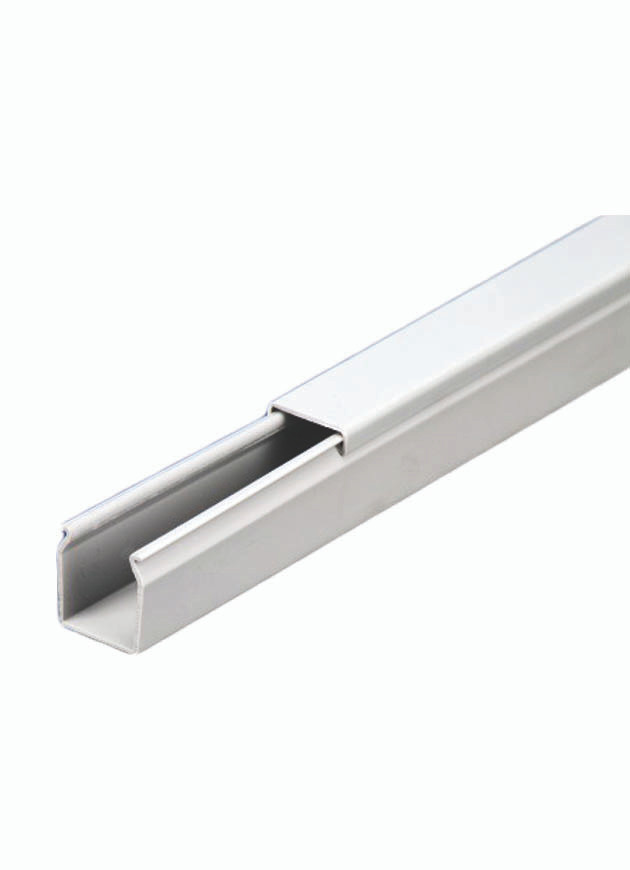

Wire Duct, Solid Wall, Grey, 1 x 1"(W x H), Minimum Order of 108' Per Carton (18 Lengths), Price per Foot
