15DV1A
Dart Controls

15DV1A

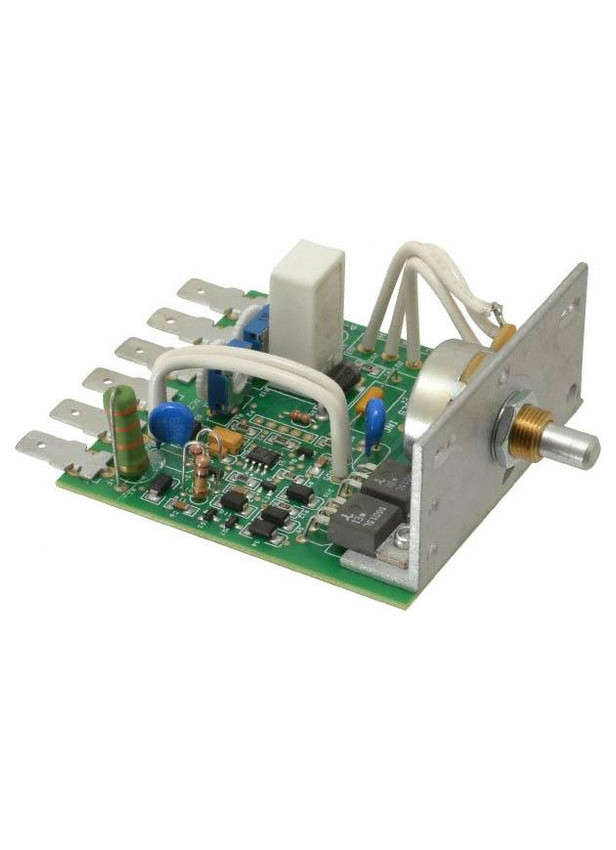

Alt: DC Speed Control, Open Chassis

$113.60

DC Speed Control, Open Chassis, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1/50 to 1/6hp 120VAC/90VDC, 1/25 to 1/3hp 240VAC/180VDC, 2ADC Current

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Dart Conrol's general purpose, economical variable speed control is ideal for small DC and universal motor applications. Features include: dual input voltages of 12/24 VAC or 120/240 VAC with DC output current rating of 2 Amps, adjustable trimpot settings, and quick connect terminal pins. The 15 Series is available in two compact panel mount styles, a NEMA 1 (15DVP) and NEMA 4/12 (15DVE) enclosed model.

Specifications
Alternate Part Number DC Speed Control, Open Chassis
Analog/Digital See Spec
Housing/Enclosure Non-Enclosed
Series 15DV Series
Speed Controller Type DC Speed Controls, Analog
All - Voltage DC
Warranty 1 Year
Weight 0.5
Length/Depth 8"
Height 2.5"
Width 4.75"
  • Dual voltage models of 12/24 VAC or 120/240 VAC input
  • Full wave bridge power supply
  • Adjustable Minimum speed
  • Adjustable Maximum speed
  • Adjustable IR Compensation
  • Fixed Acceleration
  • 5K ohm speed pot, knob & dial included
  • 25:1 speed range
  • 1% speed regulation
  • Overload capacity of 200% for 1 minute
  • Transient voltage protection
  • AC line fuse (Enclosed)
  • Power on/off switch and light (Enclosed)
