13DV1A
Alt: DC Speed Control, Chassis
$113.60
DC Speed Control, Chassis, 12VAC Supply/12VDC Motor and 12VAC Supply/24VDC Motor, 2ADC, Less than 1/20hp, Terminal Strip to Allow for Remote Installation of Speed Pot, Horizontal
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

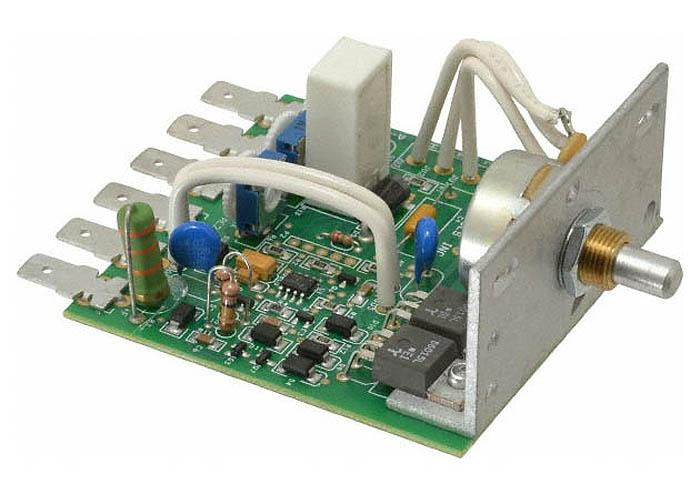

Dart Conrol's general purpose, economical variable speed control is ideal for small DC and universal motor applications. Features include: dual input voltages of 12/24 VAC or 120/240 VAC with DC output current rating of 2 Amps, adjustable trimpot settings, and quick connect terminal pins. The 15 Series is available in two compact panel mount styles, a NEMA 1 (15DVP) and NEMA 4/12 (15DVE) enclosed model.
Specifications
Alternate Part Number
DC Speed Control, Chassis
Analog/Digital
See Spec
Housing/Enclosure
Non-Enclosed
Series
13DV Series
Speed Controller Type
DC Speed Controls, Analog
All - Voltage
DC
Warranty
1 Year
Weight
0.5
Width
4.75"
Height
2.5"
Length/Depth
8"
- Dual voltage models of 12/24 VAC or 120/240 VAC input
- Full wave bridge power supply
- Adjustable Minimum speed
- Adjustable Maximum speed
- Adjustable IR Compensation
- Fixed Acceleration
- 5K ohm speed pot, knob & dial included
- 25:1 speed range
- 1% speed regulation
- Overload capacity of 200% for 1 minute
- Transient voltage protection
- AC line fuse (Enclosed)
- Power on/off switch and light (Enclosed)
