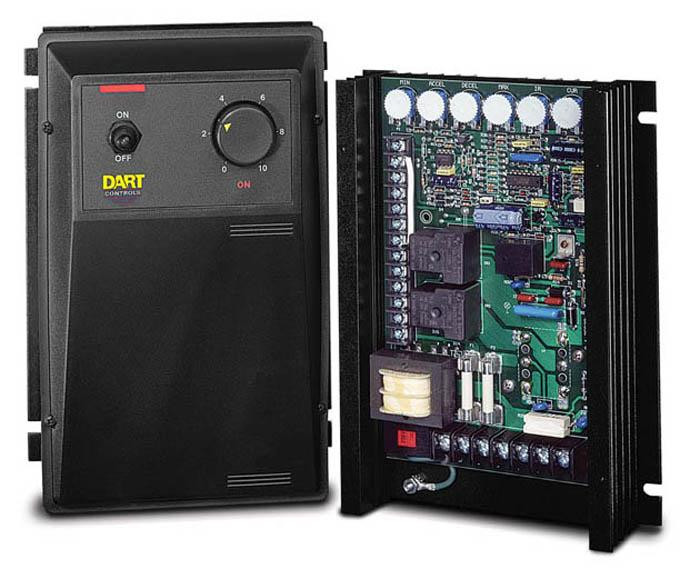

530BC

Dart’s top of the line DC speed control is reliable, versatile, and economical. Rated up to 3 horsepower, it provides many standard features typically offered as options.

The Dart 500 Series control combines advanced engineering design, quality component selection and rigorous quality control to deliver an excellent off-the-shelf SCR control. Dependable, time-proven circuitry offers performance characteristics previously available only in more costly controls. A distinguished line of quality products, the 500 Series is representative of Dart’s continuing effort to provide reliable, versatile controls to the OEM, distributor, and the industrial market.

• Dual 120/240 VAC, 50/60Hz via slide selector switch
• Adjustable horsepower settings
• Barrier terminal strip
• Packaged bridge supply (fullwave)
• 1% speed regulation; ±1/2% with tach feedback
• Adjustable Minimum speed
• Adjustable Maximum speed
• Adjustable IR Compensation
• Adjustable Linear Acceleration (0.3 to 12 sec.)
• Adjustable Linear Deceleration (0.6 to 12 sec.)
• Adjustable Current Limit
• Line voltage compensation
• 5K ohm speed pot, dial and knob included
• 50:1 speed range
• Overload capacity: 200% for one minute
• Transient voltage protection
• Inhibit circuit
• Enclosed models rated NEMA 4/12
