533BC
Alt: DC Speed Control, Open Chassis
$799.20

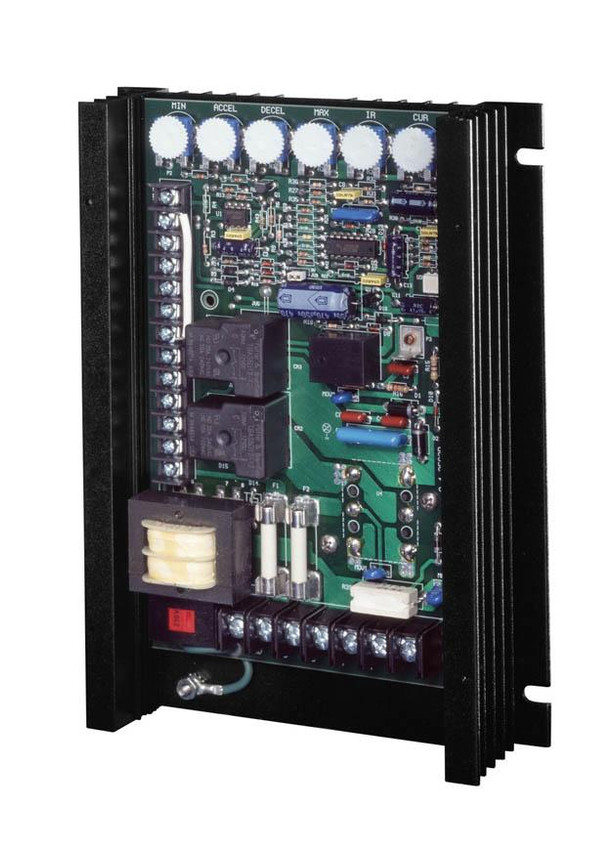

DC Speed Control, Open Chassis, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1.5hp - 120VAC/90VDC, 3hp - 240VAC/180VDC, 15ADC Current, DC Drive
- Weight:
- 2.92 LBS
- Minimum Purchase:
- 1 unit
Description
Dart Controls has proudly designed and manufactured their products in Zionsville, Indiana since 1963. They offer the broadest range of electronic motor speed controls, rated up to 3hp, in the industry!
Their products include analog and digital DC controls, their easy to use EZ VFD as well a a number of other controls and accessories.
- Dual 120/240 VAC, 50/60Hz via slide selector switch
- Adjustable horsepower settings
- Barrier terminal strip
- Packaged bridge supply (fullwave)
- 1% speed regulation; ±1/2% with tach feedback
- Adjustable Minimum speed
- Adjustable Maximum speed
- Adjustable IR Compensation
- Adjustable Linear Acceleration (0.3 to 12 sec.)
- Adjustable Linear Deceleration (0.6 to 12 sec.)
- Adjustable Current Limit
- Line voltage compensation
- 5K ohm speed pot, dial and knob included
- 50:1 speed range
- Overload capacity: 200% for one minute
- Transient voltage protection
- Inhibit circuit
