Available Now! RGC1A23A15KGU
RGC1A23A15KGU
RGC1A23A15KGU
RGC1A23A15KGU
Available Now! (5 in stock)
Carlo Gavazzi

RGC1A23A15KGU

Alt: Minimum Order 1 is Limited to Available Stock Only!

$52.00

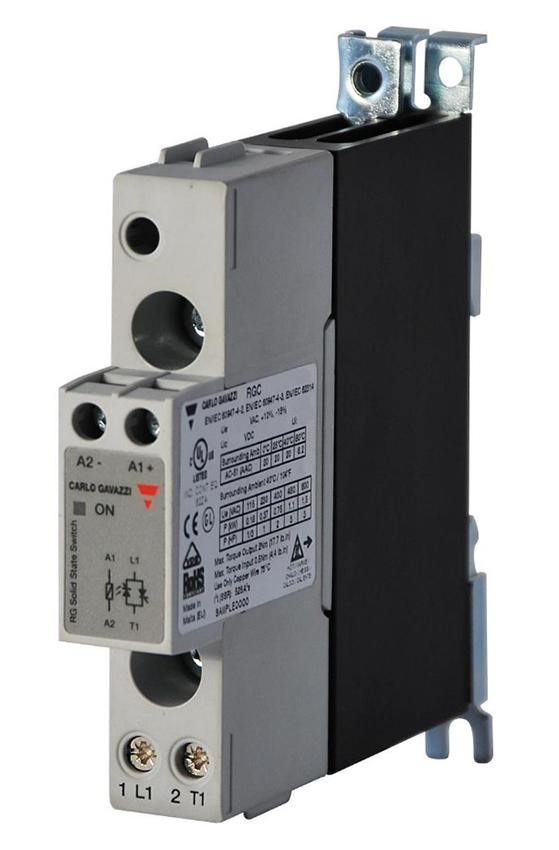

Solid State Relay with Integrated Heat Sink, Zero Cross, 1-Pole Switching, 24-264VAC, 800Vp, 20A, 20-275VAC, 24-190VDC Control Voltage, Screw Connection for Control Terminals, Box Clamp for Power Terminals, SSR Configuration

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
RGC1A23A15KGU
RGC1A23A15KGU
RGC1A23A15KGU
RGC1A23A15KGU
RGC1A23A15KGU
RGC1A23A15KGU
Description

Features Include:

  • Rated operational current @ 40°C: 20 AAC (525 A2s)
  • Control Voltage: 20-275 VAC, 24-190 VDC
  • Rated Voltage: 230 VAC
  • Switching Mode: Zero Crossing
  • Product Width: 17.5 mm, low depth
  • Mounting: DIN rail (panel mount also possible)
  • Operational frequency range: 45 to 65 Hz
  • Output protection: Integrated varistor
  • 100kA short circuit current rating according to UL508
  • Conformance to Railway standards
