RGC3A60A20KKE
Alt: Manufacturer Minimum Order 5 Pieces, Price per Piece, RGC Series
$230.40

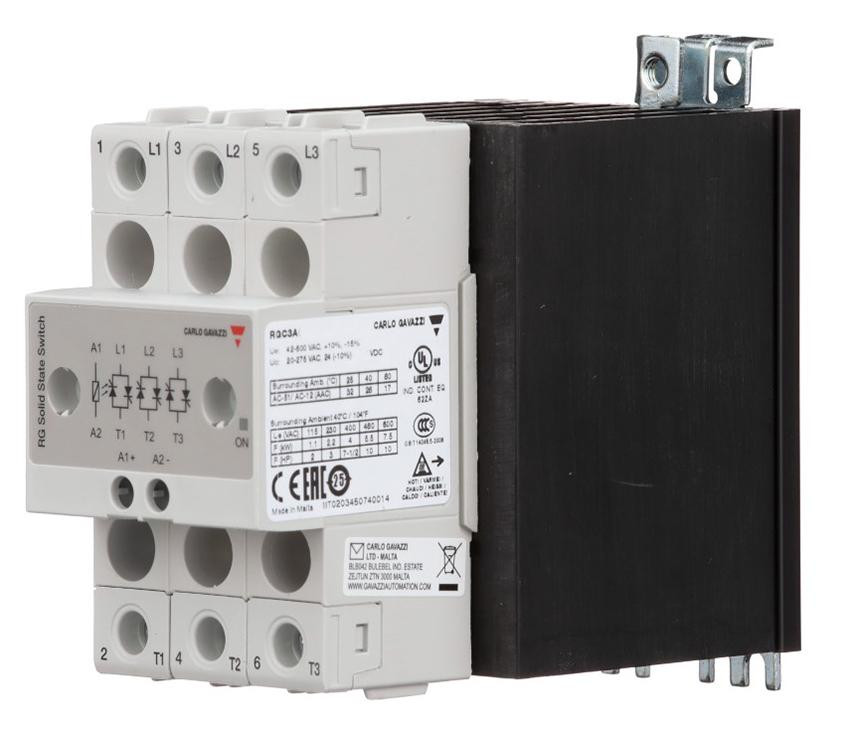

Solid State Relay with Integrated Heat Sink, 3-Pole Switching, Zero Cross, 600VAC, 1200Vp, 3 x 20A, 20-275VAC, 24-190VDC Control Voltage, Screw Connection for Input/Output Terminals, Contactor Configuration
- Weight:
- 1.30 LBS
- Minimum Purchase:
- 5 units
Description
Features Include:
- Rated operational current per pole @ 40°C: 20 AAC (1800 A2s)
- Rated Voltage: 600 VAC
- Control voltage: 20-275 VAC, 24-190 VDC

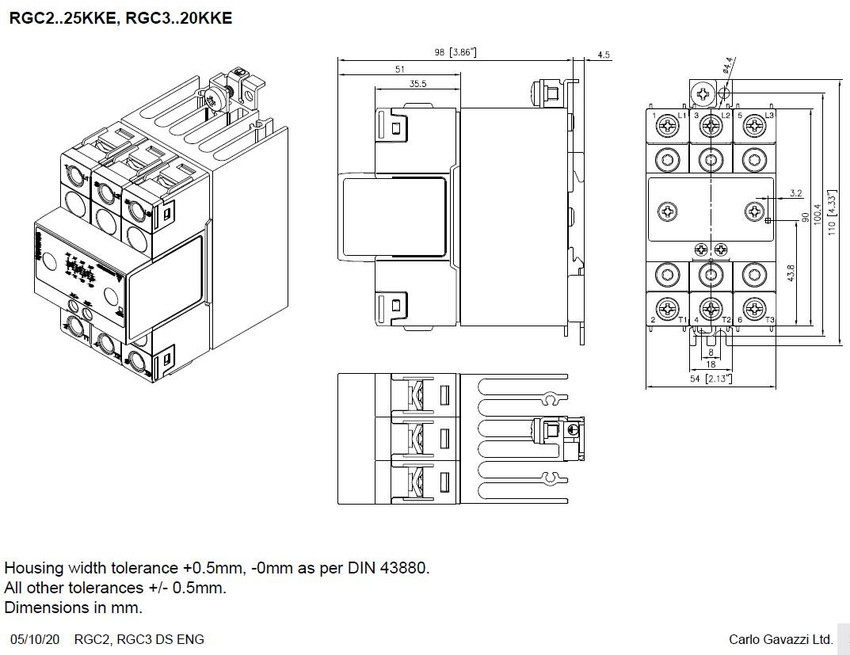

- Product Width: 70 mm
- Mounting: DIN rail
- Material: PA66 (UL94 V0), RAL7035 850°C, 750°C/2s according to GWIT and GWFI requirements of EN 60335-1
- Overvoltage Category: III, 6 kV (1.2/50 μs) rated impulse withstand voltage
- 3-phase zero cross switching solid state contactor for 2-pole switching
- Ratings up to 660 VAC 75 AAC/pole (RGC2A), 65 AAC/pole (RGC3A) @ TA 40°C
- Optionally integrated monitoring for SSR and load malfunction with alarm output for remote signaling with the RGC..M
Technical Information:
