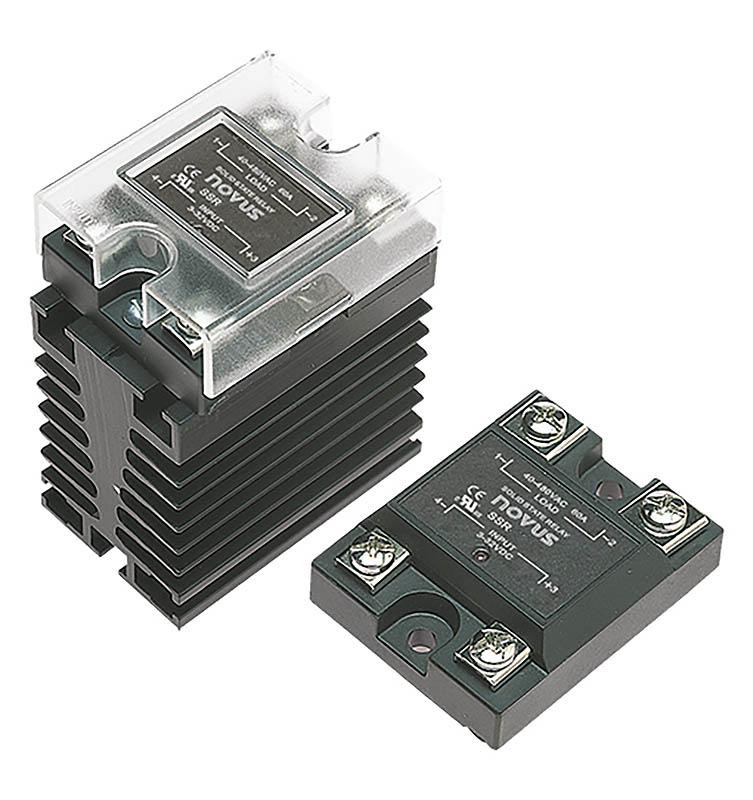

Product image is representative only, please verify specifications.
8824011100
Alt: SSR-48100 100 A / 480 VAC Switching Voltage: 4 to 32 VDC
$48.00
Solid State Relay Only, SSR-48100, 100 Amp, 480VAC, Switching Voltage 4-32VDC
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Since 1982, NOVUS Automation has manufactured devices for data acquisition, temperature and process control as well as signal conditioning.
NOVUS is headquartered in southern Brazil with sales offices and warehouses in the US as well.
Specifications
Alternate Part Number
SSR-48100 100 A / 480 VAC Switching Voltage: 4 to 32 VDC
Amp Rating
100 Amp
Control Voltage
3 to 32VDC
Operating Voltage
480VAC
Output Switching
Zero Crossing
Phase
Single Phase
All - Specific Ratings
See Spec
Type of Relay
SSR w/Heatsink
Warranty
3 Years
Weight
0.25
Features Include:
- Load Current (IL): 100 A rms
- Load Voltage: 40 to 480
- Turn-on Voltage (Vssr): 1.6 to 1.8 V rms
- Leakage Current: <5
- Frequency: 47 to 63 Hz
- Dv/dt: 300 V/μs
- Control Voltage: 3 to 32 VCC
- Control Current: 6 to 25 mA
- Switching Time: < 10 ms
- Isolation: 2000 V
- No electrical noise, sparking, or mechanical wear
- LED status indicator of the trigger signal
- Metal isolated housing
- Internal dv/dt protection snubber sized to switch resistive or inductive loads with power factor up to 0.5
- Zero Crossing: Turns on at zero Volt, turns o at zero Amps
- Optical isolation between command and power
