8824211012
Alt: SSR-4810 10 A / 480 VAC with Heat Sink ND-10 to fix rail DIN
$85.00

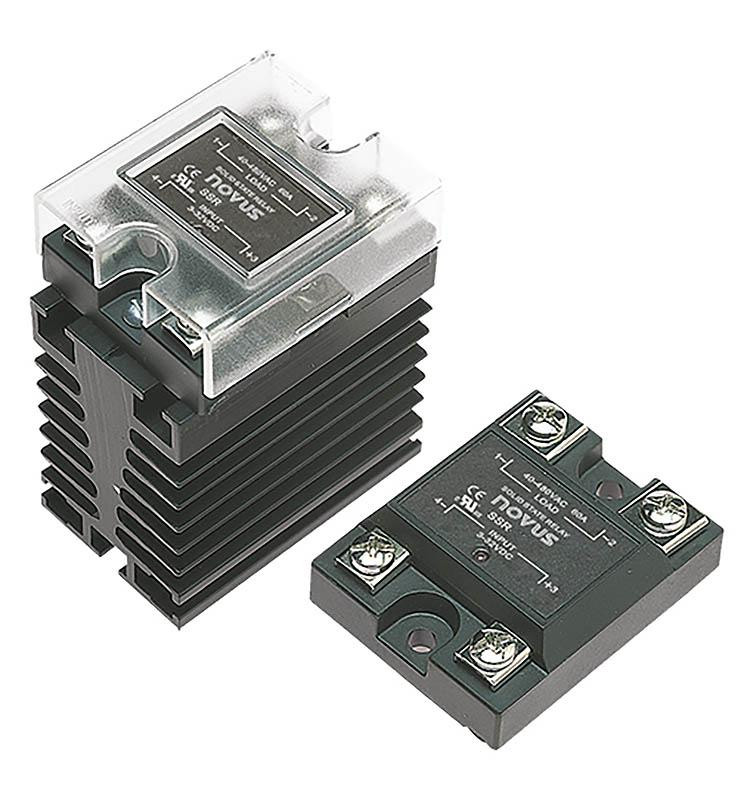

Solid State Relay with Heat Sink, SSR-4810, 10 Amp, 480VAC, Heat Sink ND-10 to Fix Rail DIN
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Since 1982, NOVUS Automation has manufactured devices for data acquisition, temperature and process control as well as signal conditioning.
NOVUS is headquartered in southern Brazil with sales offices and warehouses in the US as well.
Features Include:
- Load Current (IL): 10 A rms
- Load Voltage: 50 to 250 (25XX) / 75 to 480 (48XX)
- Voltage Drop (Vssr): 1.1 to 1.5 V rms
- Leakage Current: < 5 (25XX) / < 14 (48XX)
- Frequency: 47 to 70 Hz
- I²t (50/60 Hz): 1770 / 1629 A²s
- Dv/dt: 50 to 200 V/μs
- Control Voltage: 4 to 32 VCC
- Control Current: 5 to 12 mA
- Switching Time: < 10 ms
- Isolation: 4000 V
- No electrical noise, sparking, or mechanical wear
- LED status indicator of the trigger signal
- Metal isolated housing
- Internal dv/dt protection snubber sized to switch resistive or inductive loads with power factor up to 0.5
- Zero Crossing: Turns on at zero Volt, turns o at zero Amps
- Optical isolation between command and power
