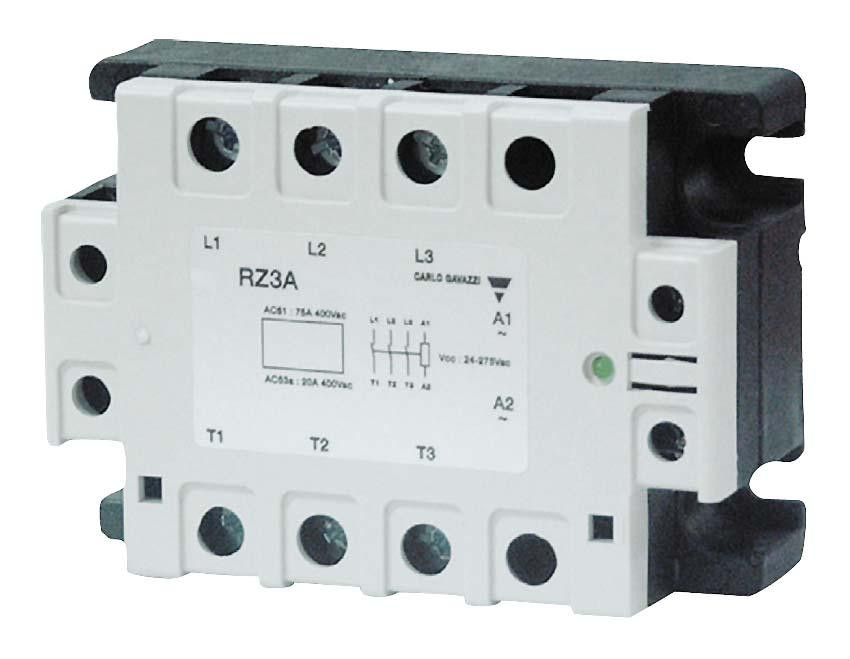

RZ3A60D25
Alt: Minimum Order 5 Pieces, Price per Piece
$208.00
Solid State Relay, 3 Phase, Zero Switching, 42-660V Operational Voltage, 25 Amp, 4-32VDC Control Input, 600V Line Voltage, For AC Resistive and Inductive Loads
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 5 units
Description
Carlo Gavazzi's RZ3A series offers fast electronic switching of 3-phase loads up to 75 amps.
Other features of this contact-free switching line of solid state relays:
- Zero switching and 4kV isolation
- Touch protection cover
- Millions of trouble free operations
- For AC resistive and inductive load types
- Available in 25, 55 and 75 amp
- Line voltage of 400V or 600V
Features Include:
- 3-phase Solid State Relay
- Zero switching
- Rated operational current: 25 A
- Rated operational voltage: 600 VACrms
- Control voltage, 4-32 VDC
- Integral snubber network
- Built-in varistor
- Over-temperature protection option with alarm output
- IP 10 back-of-hand protection
- LED indication of control input and over-temperature alarm status
Technical Information:
