Available Now!
Available Now!
(4 in stock)
RGC1A60A60KGE
Alt: Minimum Order 2 Pieces, Price per Piece, *Includes Tariff from Manufacturer
$144.89

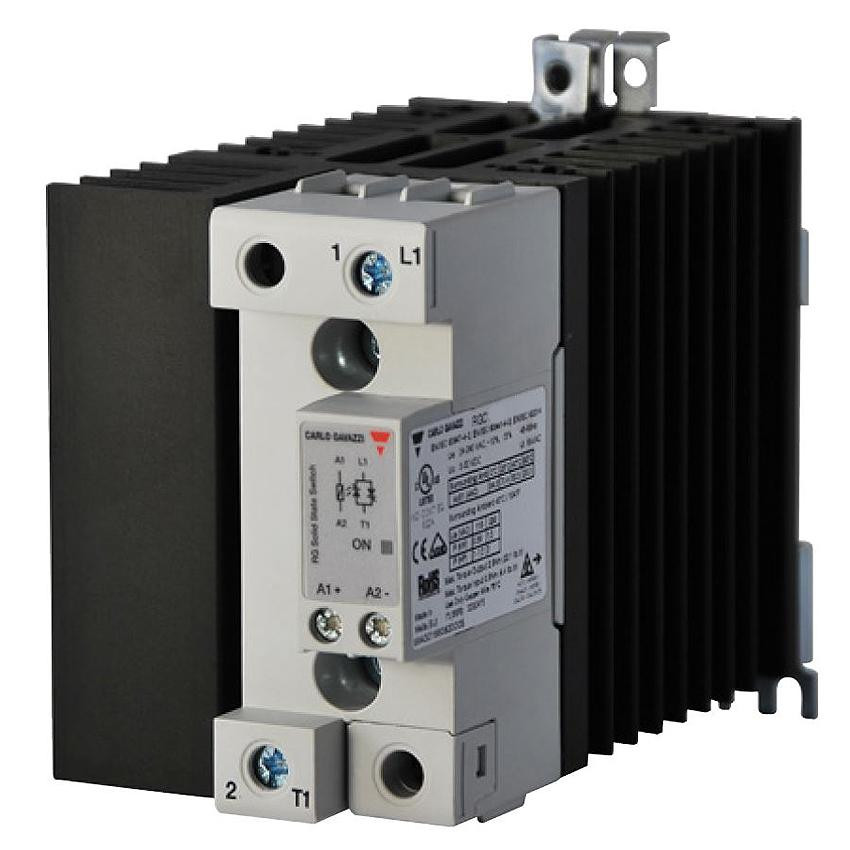

Solid State Relay, 1 Pole, Integrated Heatsink, Zero Cross, Rated Voltage: 600VAC, 1200Vp, Control Voltage: 20-275VAC, 24-190VDC, Rated Operational Current: 60AAC (3200A's), Screw Input / Box Clamp Output Terminals, IP20, 70mm Width
- Weight:
- 2.20 LBS
- Minimum Purchase:
- 2 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Specifications
Amp Rating
60 Amp
Control Voltage
20 to 280VAC
Operating Voltage
600VAC
Output Switching
Zero Crossing
Phase
Single Phase
All - Specific Ratings
IP20 Rated
Series
RGC Series
Type of Relay
SSR w/Heatsink
Warranty
1 Year
Alternate Part Number
Minimum Order 2 Pieces, Price per Piece, *Includes Tariff from Manufacturer
Height
2.87
Length/Depth
7.6
Weight
2.2
Width
5.51
Quantity
4
Features Include:
- Rated Voltage, Switching Mode: 600 VAC, Zero Cross
- Rated operational current @ 40°C: 60 AAC (3200 A²s)
- Control Voltage: 20-275 VAC, 24-190 VDC
- Product Width: 70 mm
- Material: PA66 or PA6 (UL94 V0), RAL7035, Glow wire ignition temperature and Glow wire flammability index conform to EN 60335-1 requirements
- Mounting: DIN rail (panel mount also possible)
- Touch Protection: IP20
- Overvoltage Category: III, 6 kV (1.2/50 μs) rated impulse withstand voltage
- Up to 18000 A²s for I²t for protection coordination with M.C.Bs
- 100kA short circuit current rating according to UL508
- Conformance to Railway standards
