8824312060
Alt: Solid State Module SSR 2P-60A-480V-NDP3-180 + Fan
$277.00

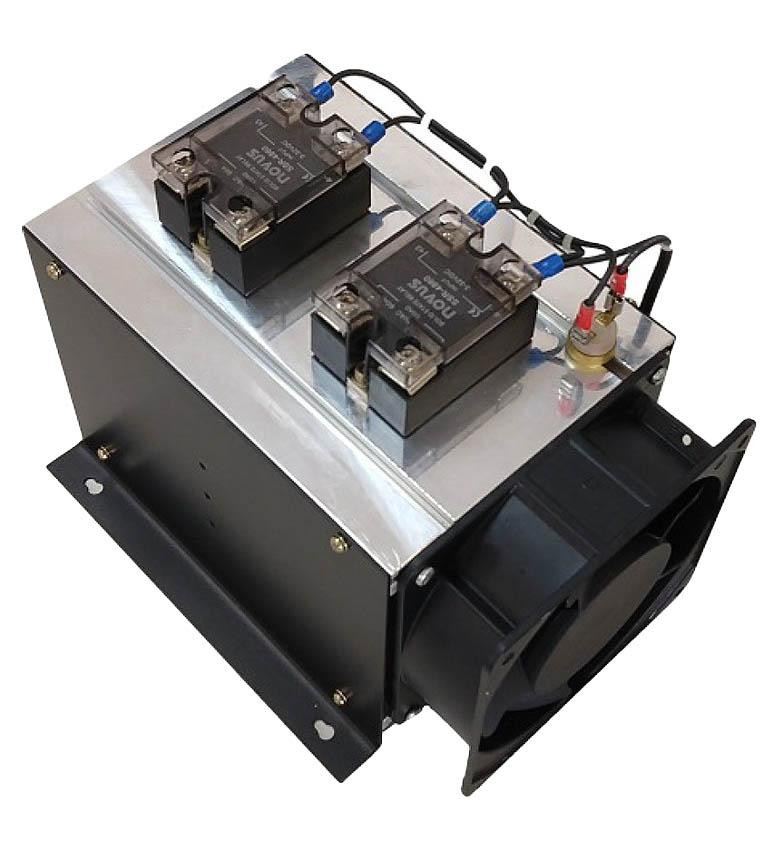

Solid State Module with Fan, 2-Phase, SSR 2P-60A-480V-NDP3-180 + Fan
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Since 1982, NOVUS Automation has manufactured devices for data acquisition, temperature and process control as well as signal conditioning.
NOVUS is headquartered in southern Brazil with sales offices and warehouses in the US as well.
Features Include:
- Maximum voltage: 480 VAC
- Load Voltage: 40 to 480 V rms
- Load Current: 60 A rms
- Voltage Drop: 1.6 to 1.8
- Leakage Current: < 5.0 mA
- Control Voltage: 3 to 32 Vdc
- Control Current: 6 to 20 mAcc
- Frequency: 47 to 63 Hz
- LED status indicator
- Internal snubber for dv/dt protection
- Trigger in zero crossing
- High switching speed
- Heatsink suitable for rated current
- Built-in fan
- Internal overheating protection (80 °C)
- The required connections are already made
- Optical isolation between command and power
- High noise immunity
- Requires minimum power for operation
- Does not generate EMI or IRF
