Available Now!

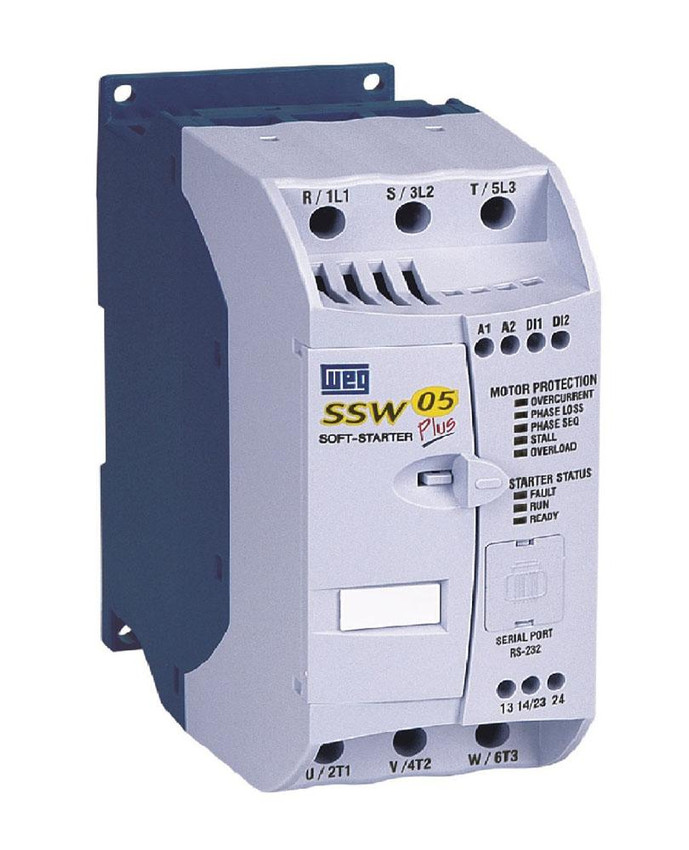

Product image is representative only, please verify specifications.
Available Now!
(3 in stock)
SSW050045T2246TPZ
Alt: 10413824, This is the Latest Version of SSW050045T2246EPZ, 10052034
$575.23
Soft Starter, Compact, 3 Phase, 15-30hp, 45 Amps, 208-480V, Variable Torque, Built In Bypass, Please Note The Suffix Update From EPZ to TPZ Was Only Due to A New Manual Included
- Weight:
- 6.00 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Specifications
Alternate Part Number
10413824, This is the Latest Version of SSW050045T2246EPZ, 10052034
Amp Rating
45 Amp
Display/No Display
With Display
Horsepower
30 hp
Phase
Three Phase
All - Specific Ratings
IP00
Series
SSW05
Options
Built-in Bypass
Soft Starter Type
Combination Starter
All - Voltage
208 to 480VAC
Warranty
18 Months
Quantity
3
Weight
6
Series Features Include:
- 208 - 480V, 50/60Hz input power supply
- Duty cycle: 300% rated current during 10 seconds, 4 starts per hour
- Built-in bypass contacts
- One digital input for Start/Stop (90 - 250 Vac)
- One digital input for Fault Reset (90 - 250 Vac)
- One relay output for Run indication (1 Amp - 250V)
- One relay output for Full Voltage indication (1 Amp - 250V)
- RS-232 serial port
- Adjustable acceleration and deceleration ramps (1 - 20 seconds)
- For high inertia loads, see SSW07 product line.
- Adjustable pedestal voltage (30 - 80% of line voltage)
- Protective features: Motor overload, over current and locked rotor, SCR overload, phase loss and phase sequence
- DIN rail or direct mount
- Ambient: 32ºF (0ºC) to 131ºF (55ºC), 3300ft (1000m) altitude, 90% non-condensing humidity
