SSW900G1100T6E3B
Weg

SSW900G1100T6E3B

Alt: 15939690, Replaces SSW061100T5769ESH2Z

$21,497.26

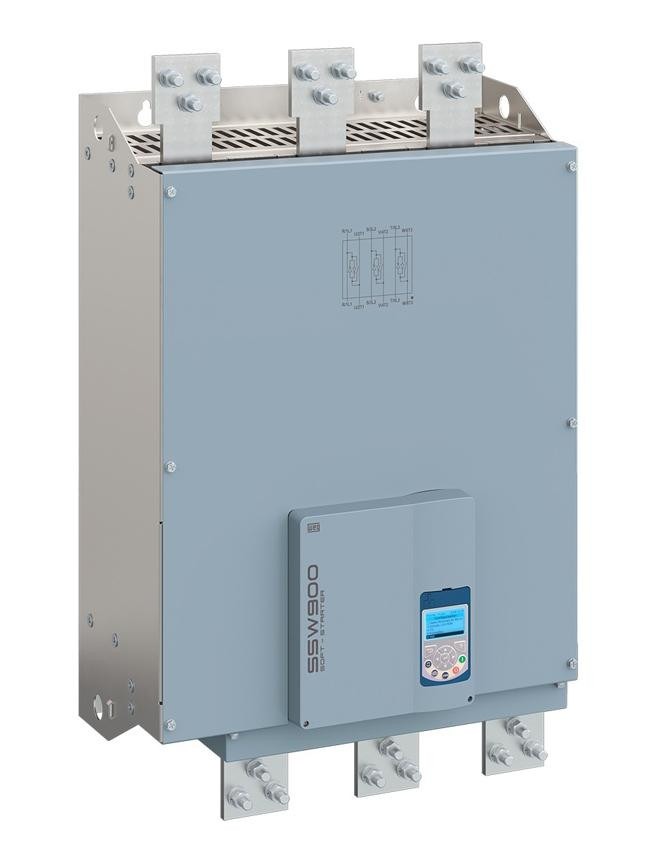

Soft Starter, 3 Phase, 1100 Amp (1100A), 690VAC, 1400hp, Frame G: 36 x 21.2 x 12.4" HWD, Protected Chassis Enclosure, IP00. (Please review and verify specifications for your application.)

Weight:
500.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Packaged starter that is a full featured, service entrance rated combination starter!
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.

WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

  • Rated current: 1100 A
  • Power supply: 400-690 V
  • Frequency: 50/60Hz
  • Number of controlled phases: 3 phases
  • Frame: G
  • Height: 914 mm / 36.0 in
  • Width: 539 mm / 21.2 in
  • Depth: 316 mm / 12.4 in
  • Built-in rated (AC1) bypass contactors for all models
  • Conformal coated circuit boards
  • Detachable Graphic HMI with USB port, with built-in Bluetooth and copy function
  • Oriented start-up and online help
  • Real time clock with event log
  • 2 independent slots to connect plug-in modules
  • Voltage ramp, Current Limit, Pump Control, Torque control, Current Ramp start modes
  • Inputs and outputs with programmable functions (5 DIs, 3 ROs, 1 AO & 1 Motor PTC Input as standard)
  • Communication Options: RS-485 (Modbus RTU), CANopen, DeviceNet, Profibus DP, Ethernet/IP, Modbus TCP/IP,
  • Profinet IO
  • SoftPLC Built in
  • Integral motor thermal protection

Technical Information:

Options & Accessories Technical Data:

Accessories
!
✓
