SSW070085T5SZ
Alt: 10194175 (Was 10233146)
$1,215.12

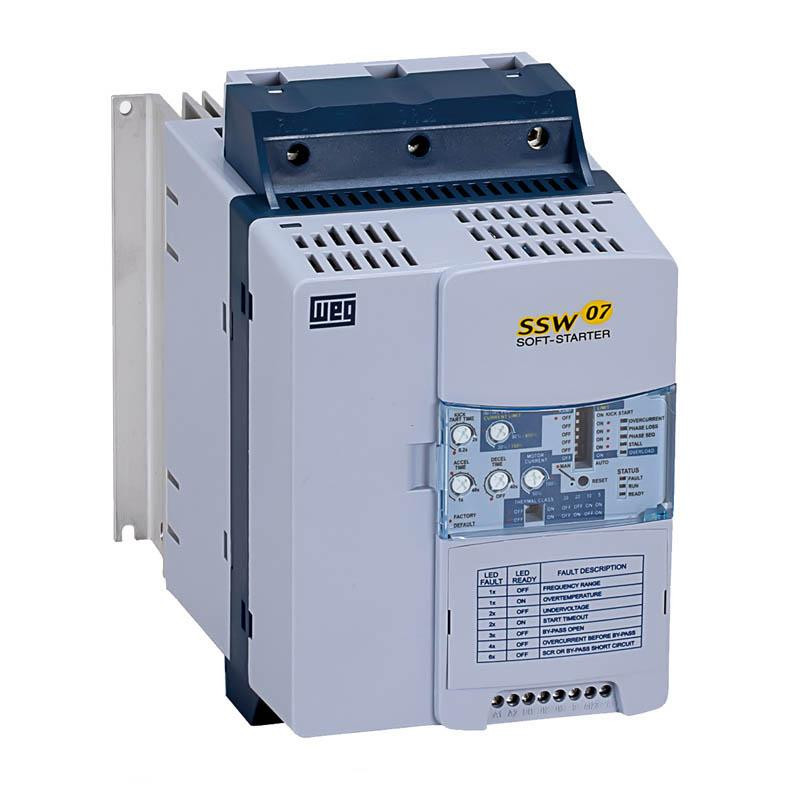

Soft Starter, 85A: 30hp/230V, 75hp/460V, 75hp/575V, 3 Phase, 8.2 x 5.6 x 8" Frame Size 2, IP20, Built-In - Internal AC-1 Bypass, Control Voltage: 94-264VAC, Series SSW07
- Weight:
- 8.50 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG SSW07 soft-starter is a static starter, designed for the acceleration, deceleration and protection of three-phase induction motors by controlling the voltage applied to the motor. It is compact has all the protections for the electric motor, adapting to the application requirements through optional accessories, which can be easily installed on the soft-starter.
The three-phase voltage control on the SSW07 allows its use in applications considered heavy, such as alternate, centrifugal pumps (sanitation, irrigation and oil), fans, exhausters, blowers, air compressors, refrigeration (screw and piston), mixers, aerators, centrifuges, rock crushers, grinders, woodchippers, paper refiners, rotary ovens, wood saws and planes, ball and hammer mills and load conveyors.
Features of the series:
- Currents: 17 to 412 A
- Voltage: 220 to 575 V
- Built-in bypass
- High starting duty
- Total control on the three phases
- Protection of the motor and built-in starter
- "Kick-Start" function for starting loads with high static friction
- Remote or local HMI (optional)
- Input for the motor PTC (optional)
- Operation in environments up to 55 °C
- Extremely reduced weights and dimensions

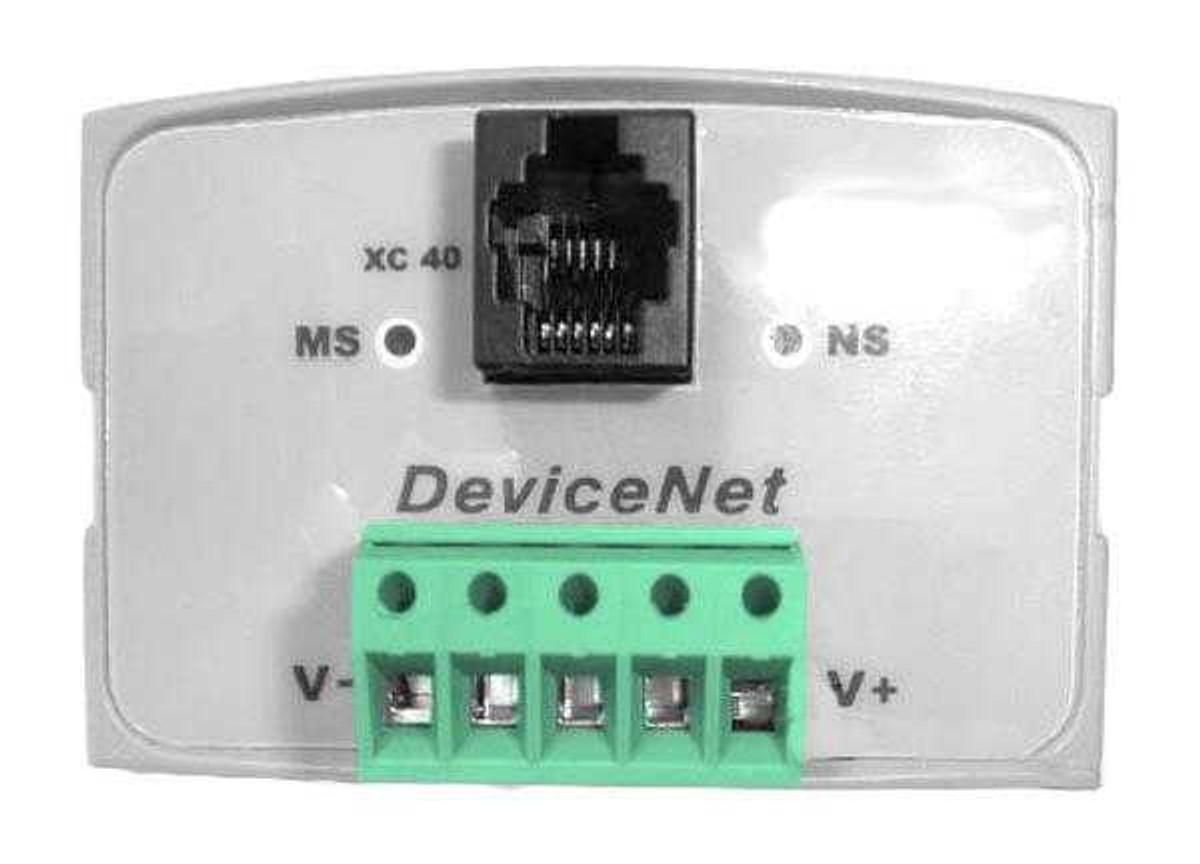

- RS-232, RS-485, DeviceNet or Ethernet communication (optional)
Specifications
Alternate Part Number
10194175 (Was 10233146)
Amp Rating
85 Amp
Display/No Display
No Display
Horsepower
30 hp
Phase
Three Phase
All - Specific Ratings
IP00
Series
SSW07
Options
Built-in Bypass
Soft Starter Type
Low Voltage (LVSS)
All - Voltage
220 to 575VAC
Warranty
18 Months
Product Data Sheet
Weg SSW070085T5SZ Datasheet
Brochure
Weg SSW07 Soft Starter Brochure
Additional Documents
Weg SSW-07 Soft-Starter User's Manual
Height
8.2
Width
5.6
Weight
8.5
Length/Depth
8
Quantity
3
