SSW900G1100T5E3B
Alt: 15827769, Recommended Replacement for SSW061100T2257ESH2Z
$20,677.62

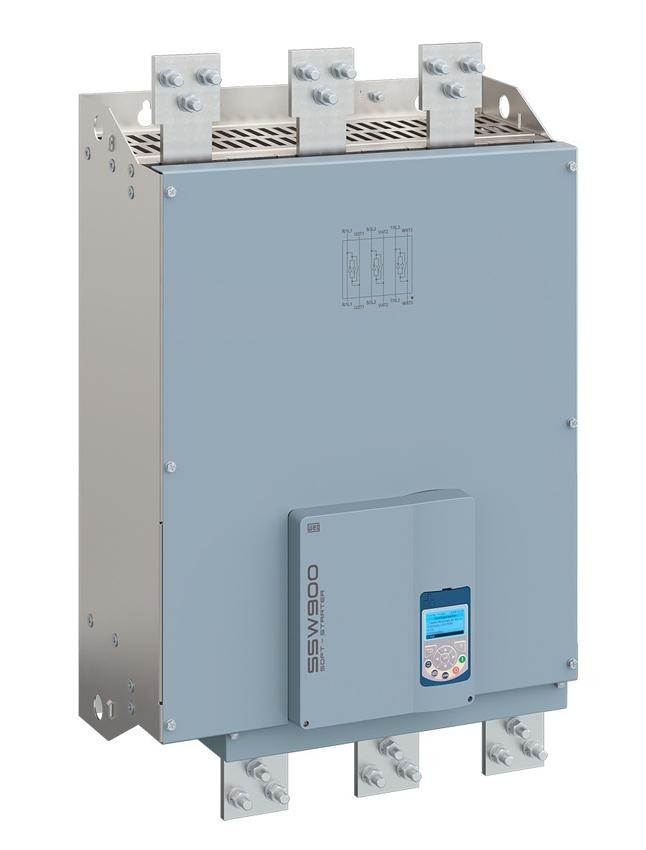

Soft Starter, 3 Phase, 1100 Amp, 230/460/575VAC, 450/900/1200hp, Frame G: 36.0"H x 21.2"W x 12.4"D, Protected Chassis Enclosure, IP00. (Please review and verify specifications for your application.)
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Motor power - standard connection (cv/kW):
- 220/230V: 450 / 330
- 380/400V: 800 / 600
- 440/460V: 900 / 670
- 575V: 1100 / 810 - Digital inputs:
- Quantity (standard : 6
- Type: DC NPN / PNP
- Voltage: 24 VDC
- Minimum high level: 18 VDC
- Maximum low level: 3 VDC
- Maximum voltage: 30 VDC
- Input current: 11 mA @ 24 VDC - Dimensions:
- Height: 914 mm / 36.0 in
- Width: 539 mm / 21.2 in
- Depth: 316 mm / 12.4 in - Built-in bypass, providing size reduction and energy savings
- Ambient temperature up to 55°C without current derating
- Possibility of standard connection (3 wires) or motor inside delta connection (6 wires)
- Inputs and outputs with programmable functions and quick connect terminals
- Different control methods via extremely high-performance algorithms, totally flexible, to meet the needs of any motor start and stop application needs
- Pump control function for smart control of pumping systems
- Advanced techniques to detect faults in the power supply and connections, enabling the user to choose the protection actuation between fault or alarm for full motor protection
- Fire mode (emergency start)
- Oriented start-up
- WPS: free software to program both soft-starter and SoftPLC
- 2 independent slots to connect plug-in modules
- Real time clock
- Fault and alarm log saved with time and date by the RTC
- Exportation of the WPS history to csv file
- Optional varnishing of the standard 3C2 or 3C3 boards, according to IEC60721-3-3
Technical Information:
- Weg SSW900G1100T5E3B Soft-Starter Datasheet
- Weg SSW900 Soft-Starter Flyer
- Weg SSW900 Soft-Starter Catalog
- Weg SSW900 Soft-Starter Quick References
- Weg SSW900 Soft-Starter Quick Installation Guide
- Weg SSW900 Soft-Starter User's Manual
- Weg SSW900 Parameter Structure
