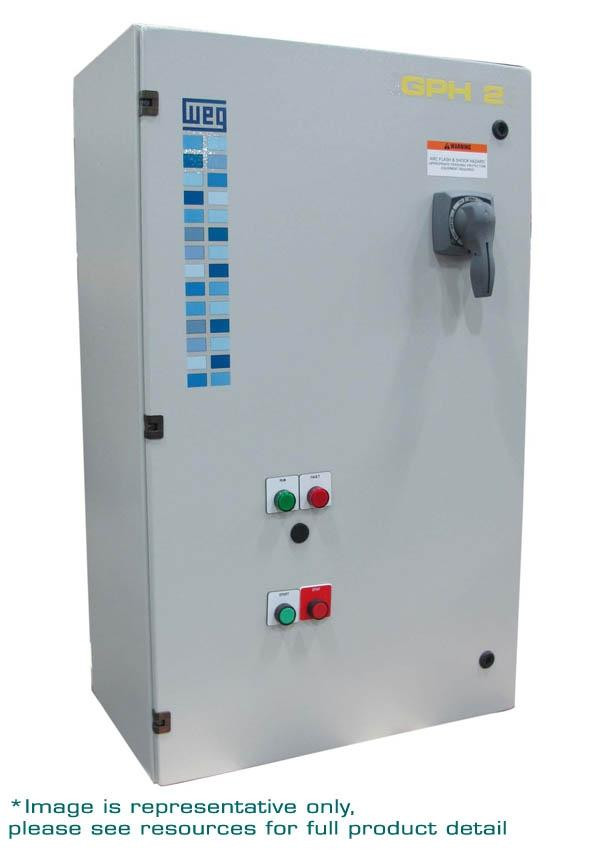

Product image is representative only, please verify specifications.
GPH2010QC2001
Alt: Combination Soft Starter
Soft Starter, 10hp, 30A, 3 Phase, 200-240VAC, NEMA 4/12 Enclosure with Circuit Breaker, AC1 Bypass & Keypad on Door
- Weight:
- 140.00 LBS
- Minimum Purchase:
- 1 unit
Looking for quick installation and easy start up?
Our WEG GPH2 is a combination soft starter that requires only input power and output motor connections!
Check individual models for these options:
- AC3 by-pass contactor and DOL selector switch
- Door mounted keypad
- 575V AC supply
- SUSE service entrance rated
The GPH2 is great for centrifugal pumps, screw compressors, centfigual fans, wood chippers, lathes, saws and conveyors.
Ideal when used with WEG motors!
Features Include:
- Rated for 300% for 30 seconds 4 x per hour
- 5 - 500HP at 230V
- 10 – 1200hp at 460V
- Wall mounted enclosures for SSW07 (from 17 - 200Amps) NEMA12
- Floor Mounted enclosure for SSW06 (from 255A – 800A) NEMA12
Standard Panel Includes:
- Soft Starter:
- SSW07 for GPH2 from 17 to 200A (all models with integrated AC1 by-pass)
- SSW06 for GPH2 from 255 up to 800A (all models with integrated AC1 by-pass)
- Circuit Breaker Through Door Disconnect
- Control Power Transformer
- Start/Stop pushbuttons
Optional Features:
- AC3 by-pass contactor and with Soft Starters and DOL Selector Switch
- Door mounted keypad
- NEMA 3R Enclosure
- NEMA 4 Enclosure
- Rain/Sun Shield for Outdoor Installation
- 575V
Applications:
- Centrifugal Pumps
- Screw Compressors
- Wood Chipper
- Veneer Lathe
- Saws
- Conveyors
