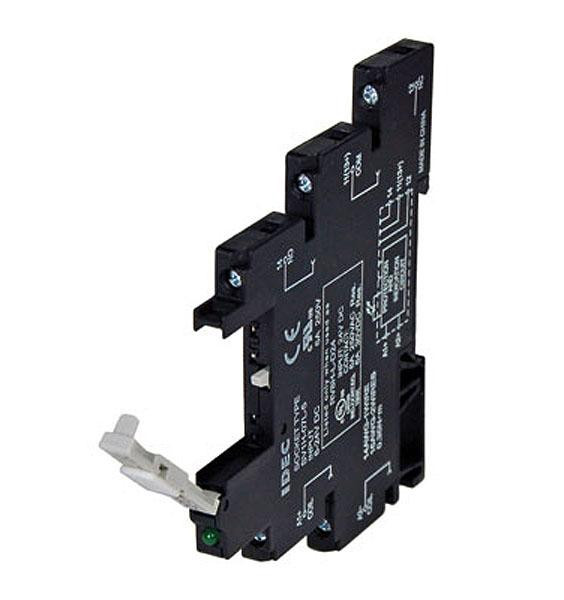

SV1H-07L-1

Series Features Include:

• Class I Division 2 and Class I Zone 2 Hazardous Location options
• Lever for easy locking and removal of relay
• Only 71mm in height from DIN rail
• Gold-plated contacts (RV8H-L & S and RV8H-2)
• Pre-assembled relay and DIN mount socket
• Universal screw terminals (flat and phillips) or spring clamp terminals available for all versions
• Universal AC/DC socket with built-in surge suppression and green LED
• 6A contact rating on 6mm RV8H, 8A on RV8H-2, 16A rating on RV8H-1
• Operating temperature of -40ºC ~ 70°C for EMR (-20°C ~ +60°C for SSR)
• RoHS compliant
