SRW01-UCDT1E47
Alt: 10673500
$501.50
Smart Relay, DeviceNet, PTC, 24VDC, 110-240VAC/DC, 50/60Hz
- Weight:
- 1.25 LBS
- Minimum Purchase:
- 1 unit
Description

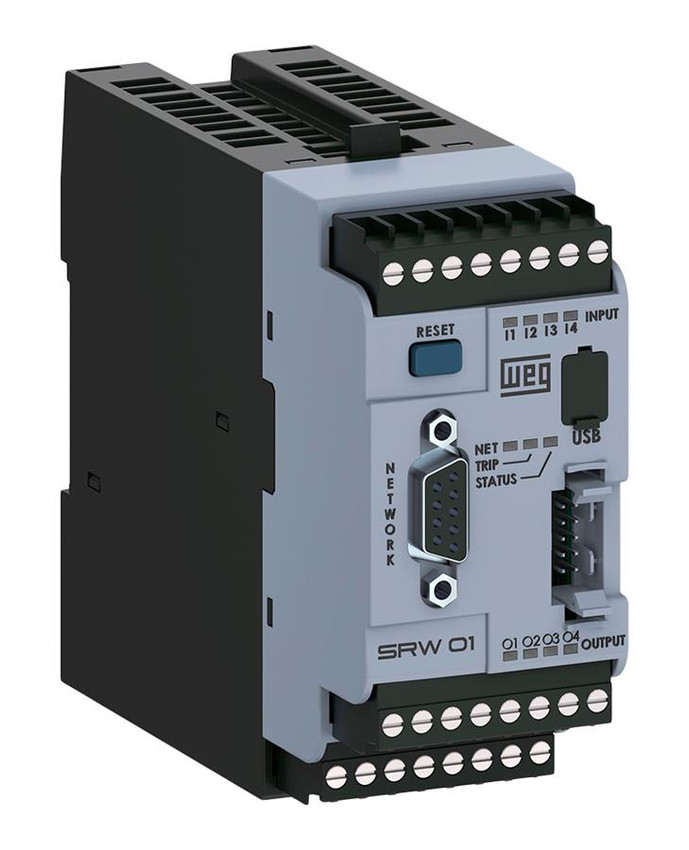

WEG SRW01 series are smart relays that provide protection, control, data magagement and diagnosis of low voltage electric motors.
These smart relays can be used in several industrial network protocols and can be expanded with more digital inputs and outputs.
Plug and play connectors, free WLP programming software and a USB communication port makes this a great solution!
Models available with:
- Modbus-TCP
- PROFINET IO
- EtherNet/IP
- Modbus-RTU
- Profibus
- DeviceNet
Marshall Wolf Automation is your authorized WEG distributor!
Specifications
Alternate Part Number
10673500
Display/No Display
No Display
I/O
N/A
Output
See Spec
Series
SRW01 Series
Options
No Special Options
Type of Product
SmartRelays
All - Voltage
24VDC
Warranty
18 Months
Weight
1.25
Features Include:
- Digital Input Voltage: 24VDC
- Supply Voltage: 110-240VDC 50/60Hz
- Communication Protocol: DeviceNet
- Protection: PTC- Temperature Sensor
- Reliable operating modes and command
- Status LED indicator that simplifies the identification of the operation
- User-friendly interface
- 6 digital inputs, 4 outputs
- The Control Unit (UC) can be assembled with the Current Measuring Unit (UMC) or current and voltage measuring unit (SRW01-UMCT), forming a single unit, or separated (up to 2 meters).
- Control Unit (UC) input power range: 110-240 V ac/dc or 24 V ac/dc
- Control Unit (UC) with 4 digital inputs and 4 digital outputs
- DIN rail or screws mounting
- Easy network module change, via exclusive drawer system
- Programming via free WLP software or HMI (optional)
Can be parameterized, programmed and monitored in three different ways:
- Via networks (DeviceNet, Profibus-DP, Modbus-RTU, EtherNet/IP, Modbus-TCP and PROFINET IO)
- Via human machine interface - HMI (SRW01-HMI)
- Via USB with the free WLP software
