118435
Alt: SLA29-R/73c
$231.43

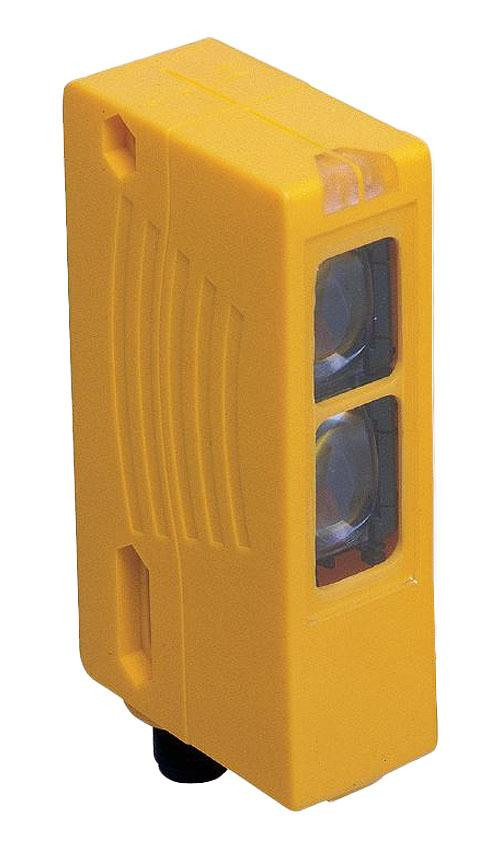

Safety Thru-Beam Sensor (Receiver), Plastic, M12 4-Pin Connector, IP67 for Operation on SB4 Series Control Units (SafeBox), Returns of This Item Must Be Approved by Manufacturer
- Minimum Purchase:
- 1 unit
Description
Features Include:
- System Component: Receiver
- Effective detection range: 0.2 - 30 m
- Threshold detection range: 40 m
- Light source: LED
- Light type: modulated visible red light
- Target size static: 30 mm, dynamic: 40 mm (at v = 1.6 m/s of the obstacle)
- Connection: terminal compartment
- Material: Housing ABS plastic, RLA 1021 (yellow) painted, Optical face Plastic pane
- Alignment aid LED red in receiver
- Self-monitoring (type 4 according to IEC/EN 61496-1)
- Red transmission light
- Integrated alignment aid
- Clearly visible LED functional display and pre-fault indicator on the receiver
- Sturdy housing
- Waterproof, degree of protection IP67
- Operation on control units of SB4 (SafeBox)
