Alt: NZ2RS-511SVM5L060GEC2273

$183.17

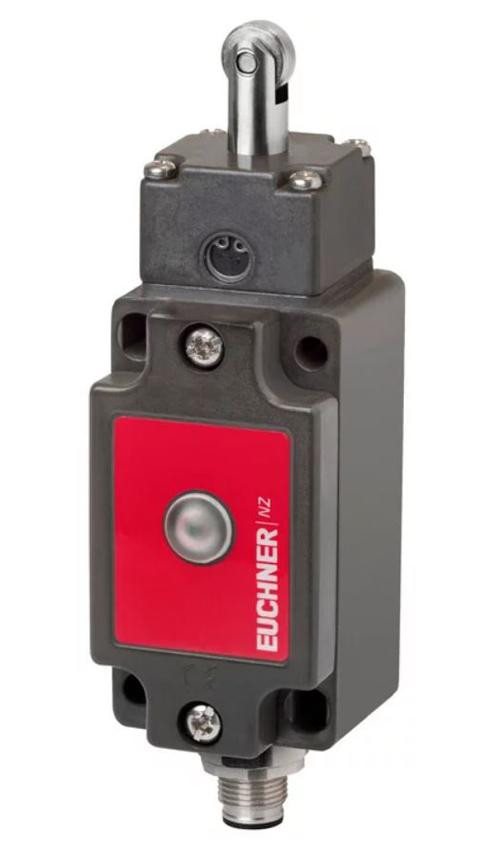

Single Plunger, NZ2RS-511SVM5L060GEC2273

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Features Include:

  • Version C according to EN 50041(steel roller ø 12 mm)
  • Housing material: Housing Anodized die-cast alloy
  • Ambient temperature: -25 - 80 °C
  • Degree of protection: IP67
  • Mechanical life: 30 x 10^6
  • Contact material: Silver alloy, gold flashed
  • Switching principle: Slow-action switching contact
  • Installation orientation: Any
  • Number of door position positively driven contacts: 1
  • Number of NO contacts: 1
  • Connection: 1 x Plug connector M12
  • Approach speed: 0.1 - 20 m/min
  • Actuating element: Plain bearing metal Roller plunger
  • Actuating force min.: 15 - 30 N
  • Thermal rated current Ith: 4 A
  • Utilization category acc. to EN 60947-5-1: AC-15 4A 30V | DC-13 4A 24V
  • Short circuit protection according to IEC 60269-1: 4A gG
  • Rated insulation voltage Ui: 50 V
  • Rated impulse withstand voltage Uimp: 1.5 kV
  • Switching current: Min. at DC 24V 10 mA
  • Display module: AC/DC 60 V 12 - 60 V LED yellow
