091339

091339

Alt: 91339, NZ1RS-528-MC1588

$226.60

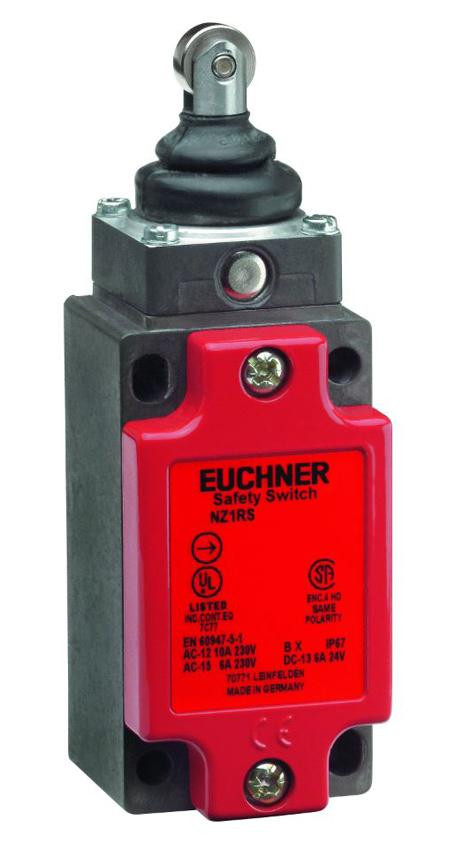

Single Plunger, NZ1RS-528-MC1588

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.

Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Features Include:

  • Version C according to EN 50041 (steel roller ø 12 mm)
  • Exterior bellows (CR-based material)
  • Actuating element: Slide bearing metal Roller plunger
  • Connection: 1 x M20 x 1.5
  • Switching principle: Slow-action switching contact
  • Connection cross-section: 0.34 - 1.5 mm²
  • Rated impulse withstand voltage Uimp: 2.5 kV
  • Rated insulation voltage Ui: 250 V
  • Short circuit protection according to IEC 60269-1: 4A gG
  • Switching current min. at DC 24V: 1 mA
  • Thermal rated current Ith: 4 A
  • Utilization category: AC-15 4A 230V | DC-13 4A 24V
  • Actuating force: 15 - 30 N
  • Ambient temperature: -25 - +80 °C
  • Approach speed: 0.1 - 20 m/min
  • Degree of protection: IP67
  • Installation orientation: any
  • Lid: Red
  • Material: Contact Silver alloy, gold flashed | Housing Anodized die-cast alloy
  • Mechanical life: 30 x 10⁶
  • Number of door position positively driven contacts: 1
  • Number of NO contacts: 1
