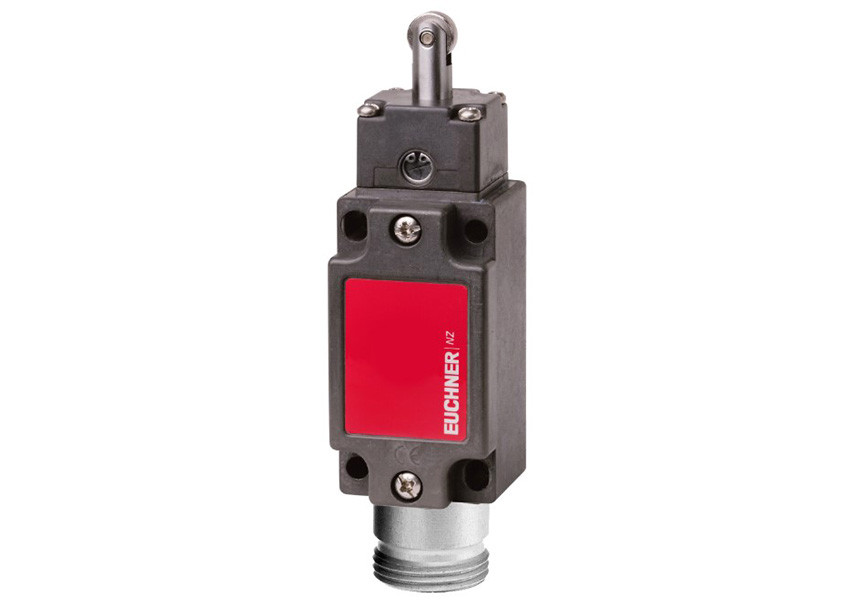

077362

Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Features Include:

• Housing material: Housing Anodized die-cast alloy
• Ambient temperature: -25 - 80 °C
• Degree of protection: IP65
• Mechanical life: 30 x 106
• Contact material: Silver alloy, gold flashed
• Switching principle: Slow-action switching contact
• Installation orientation: Any
• Number of door position positively driven contacts: 3
• Number of NO contacts: 1
• Connection: 1 x Plug connector MR9
• Approach speed: 0,1 - 20 m/min
• Actuating element: Plain bearing metal Roller plunger
• Actuating force: 15 - 30 N
• Thermal rated current Ith: 4 A
• Utilization category acc. to EN 60947-5-1: AC-15 4A 230V | DC-13 4A 24V
• Short circuit protection according to IEC 60269-1: 4A gG
• Rated insulation voltage Ui: 250 V
• Rated impulse withstand voltage Uimp: 2.5 kV
• Switching current: Min. at DC 24V 1 mA

Technical Information:

• Euchner NZ.RS Series Safety Switch Technical Data
• Euchner NZ.D/W/R Series Safety Switch Operating Instructions
• Euchner Safety Switches with Metal Housing Catalog
