094167
Alt: 94167, NZ1HS-3131-M-EX
$338.06

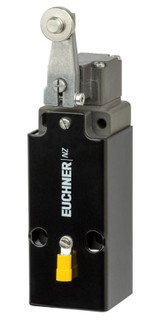

Single Plunger, NZ1HS-3131-M-EX
- Weight:
- 1.18 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- ATEX version
- Version A according to EN 50041 (steel roller ø 18 mm)
- Suitable for use in zones 2 and 22 (gases and dusts)
- Connection cross-section: 0.34 - 1.5 mm²
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 50 V
- Short circuit protection according to IEC 60269-1: 4A gG
- Switching current min. at DC 24V: 1 mA
- Switching voltage: 12 V
- Thermal rated current Ith: 4 A
- Utilization category: AC-15 4A 50V |DC-13 4A 24V
- Actuating element: Slide bearing metal Lever arm
- Actuating force at 20°C: 30 N
- Actuation frequency: max. 1200 1/h
- Ambient temperature: -25 - +80 °C
- Approach speed: 0.1 - 60 m/min
- Clamping range for cable: 6.5 - 12 mm
- Connection: 1 x Cable gland M20 x 1.5
- Degree of protection: IP67
- Installation orientation: any
- Housing: Anodized die-cast alloy
- Contact: Silver alloy, gold flashed
- Mechanical life: 30 x 10⁶
- Number of door position positively driven contacts: 2
- Number of NO contacts: 2
- Switching principle: Slow-action switching contact
