086322

086322

Alt: 86322, NG1VB-510-M

$85.51

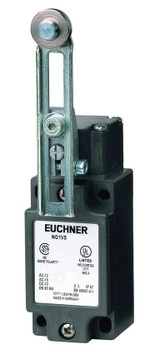

Position Switch, Adjustable Plastic Roller Lever Arm from 28 to 75mm, Snap-Action Switching Contact 510: 1NC/1NO, Cable Entry M20 x 1.5, Ambient Temperature: -25 to +80°C, IP67

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.

Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Features Include:

  • Adjustable roller lever arm VB (plastic)
  • Cable entry: M20 x 1.5
  • Connection cross-section: 0.34 - 1.5 mm²
  • Rated impulse withstand voltage Uimp: 2.5 kV
  • Rated insulation voltage Ui: 250 V
  • Switching current (min. at DC 24V): 10 mA
  • Thermal rated current Ith: 6 A
  • Actuating element: Slide bearing plastic Roller lever arm adjustable
  • Actuating force: min. 15 N
  • Ambient temperature: -25 - +80 °C
  • Approach speed: 0.5 - 120 m/min
  • Connection: 1 x M20 x 1.5
  • Degree of protection: IP67
  • Installation orientation: any
  • Contact: Silver alloy, gold flashed
  • Housing: Anodized die-cast alloy
  • Mechanical life: 30 x 10⁶
  • Number of door position NC contacts: 1
  • Number of door position NO contacts: 1
  • Switching principle: Snap-action switching contact

Utilization category:

  • AC-12 10A 230V
  • AC-15 6A 230V
  • DC-13 6A 24V
