090575

Features Include:

• Pivoted lever arm SM (aluminum rod)

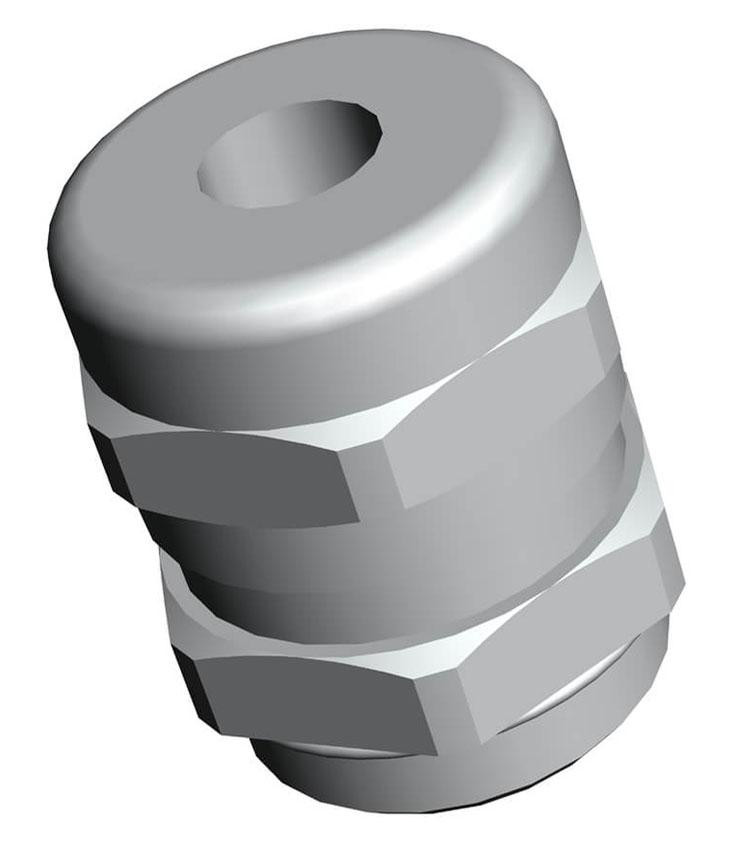

• Cable entry M20 x 1.5
• LED indicator
• Connection cross-section: 0.34 - 0.75 mm²
• Display module: AC/DC 12 - 60 - 60 V LED red
• Rated impulse withstand voltage Uimp: 2.5 kV
• Rated insulation voltage Ui: 250 V
• Switching current (min. at DC 24V): 10 mA
• Thermal rated current Ith: 6 A
• Actuating element: Pivoted lever arm
• Actuating force: min. 15 N
• Ambient temperature: -25 - +80 °C
• Approach speed: 0.01 - 20 m/min
• Connection: 1 x M20 x 1.5
• Degree of protection: IP67
• Installation orientation: any
• Contact: Silver alloy, gold flashed
• Housing: Anodized die-cast alloy
• Mechanical life: 30 x 10⁶
• Number of door position NC contacts: 1
• Number of door position NO contacts: 1
• Switching principle: Snap-action switching contact

Utilization category:

• AC-12 10A 230V
• AC-15 6A 230V
• DC-13 6A 24V

Technical Information:

• Euchner NGxxx Series Position Switch Operating Instructions
• Euchner Position and Multiple Limit Switches Catalog
