$14.91
Description
Features Include:

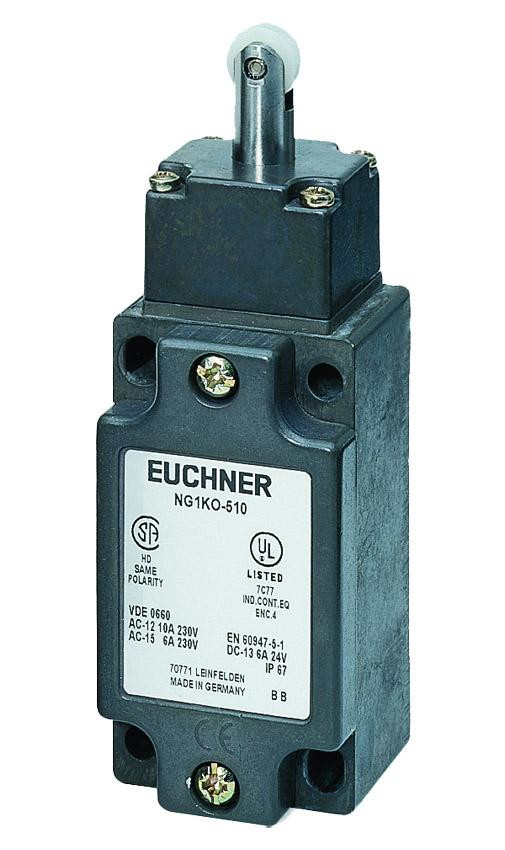

- Plunger actuator RG (roller plunger, plastic roller)
- Cable entry M20 x 1.5
- Connection cross-section: 0.34 - 1.5 mm²
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Switching current (min. at DC 24V): 10 mA
- Thermal rated current Ith: 6 A
- Actuating element: Slide bearing plastic Roller plunger
- Actuating force: 15 - 30 N
- Ambient temperature: -25 - +80 °C
- Approach speed: 0.01 - 20 m/min
- Connection: 1 x M20 x 1.5
- Degree of protection: IP67
- Installation orientation: any
- Contact: Silver alloy, gold flashed
- Housing: Anodized die-cast alloy
- Mechanical life: 30 x 10⁶
- Number of door position NC contacts: 1
- Number of door position NO contacts: 1
- Switching principle: Snap-action switching contact
Utilization category:
- AC-12 10A 230V
- AC-15 6A 230V
- DC-13 6A 24V
