$14.91
088604
Alt: 88604, NG1KO-510-M
$69.65

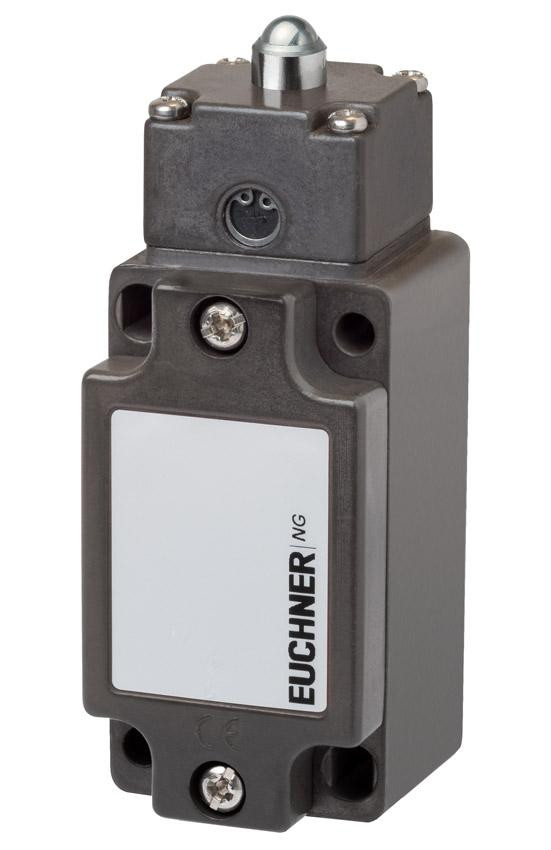

Single Plunger, NG1KO-510-M
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Plunger actuator KO (ball plunger)
- Cable entry M20 x 1.5
- Connection cross-section: 0.34 - 1.5 mm²
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Switching current (min. at DC 24V): 10 mA
- Thermal rated current Ith: 6 A
- Actuating element: Ball plunger
- Actuating force: 15 - 30 N
- Ambient temperature: -25 - +80 °C
- Approach speed: 0.01 - 10 m/min
- Connection: 1 x M20 x 1.5
- Degree of protection: IP67
- Installation orientation: any
- Contact: Silver alloy, gold flashed
- Housing: Anodized die-cast alloy
- Mechanical life: 30 x 10⁶
- Number of door position NC contacts: 1
- Number of door position NO contacts: 1
- Switching principle: Snap-action switching contact
Utilization category:
- AC-12 10A 230V
- AC-15 6A 230V
- DC-13 6A 24V
