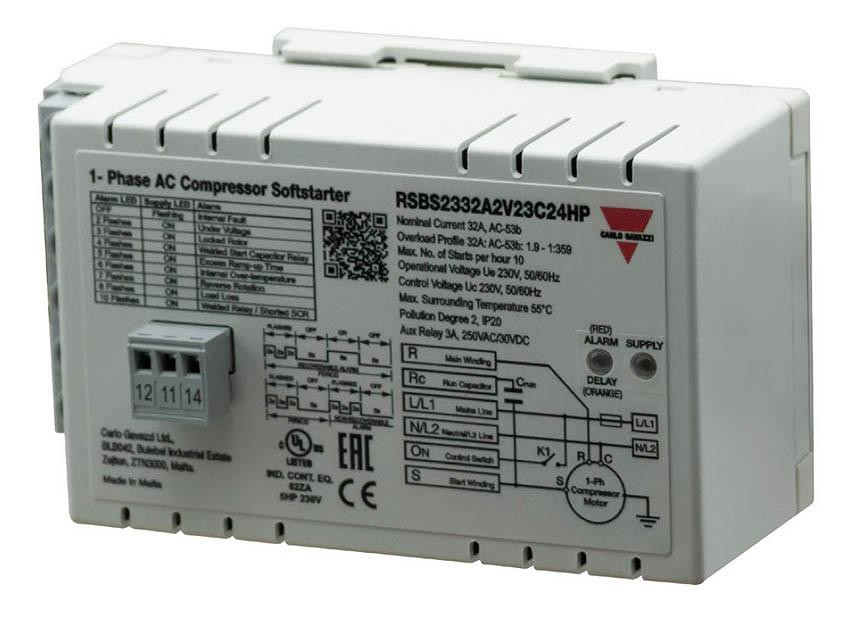

RSBS2332A2V23C24HP
$372.80

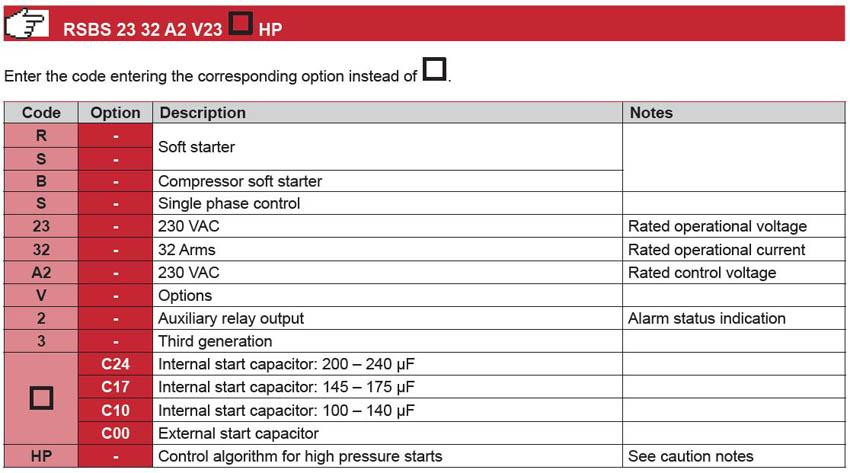

Single Phase Compressor Soft Starter, 230VAC, 32 Arms, Auxiliary Relay Output (Alarm Status Indication), 3rd Generation, SC-240: Internal Start Capacitor: 200 – 240°F
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Specifications
Amp Rating
32 Amp
Display/No Display
With Display
Horsepower
See Spec
Phase
Three Phase
All - Specific Ratings
IP20 Rated
Options
Built-in Bypass
Soft Starter Type
Combination Starter
All - Voltage
220/240VAC
Warranty
1 Year
Weight
1
Features Include:
- Compressor maximum operating current (IMAX): 16 - 32 Arms
- Operational voltage range: 195.5 – 264.5 VAC
- Supply current at idle: ≤ 15 mA
- Blocking voltage: 1200 Vp
- Rated AC frequency: 50/60 Hz (+/- 5 Hz)
- Rated insulation voltage: 250 VAC
- Material: PA66
- Assembly: DIN or panel
- Touch protection: IP20
- Limitation of compressor starting current
- Ramp-up time optimised to 600 ms
- Anti-short cycling function with built-in delay between starts
- Voltage dips/interruptions detection during bypass state
