MW86N-00-S3R
Menics

MW86N-00-S3R

Alt: MW86N Series

$67.13

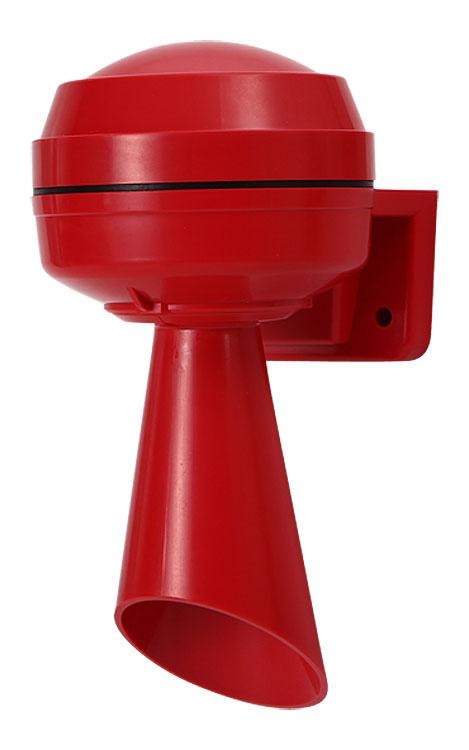

Signal Horn, Ø86mm, Wall Mount, 12-24VDC, Red Body, Adjustable Volume, 3 Sirens, Removable Horn Included, IP54 with Horn, IP43 without Horn

Weight:
2.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
If not in stock we can generally ship in 1 to 2 days!
Description

The MW86N series is a wall mount signal horn that is 86mm, has adjustable volume, 3 sirens (fire truck, police car or ambulance) and is IP54 rated. This horn is available in 12-24VDC (00) or 90-240VAC (FF).

We have the unit available online in red, however, ivory and black are available and may be special order.

Features Include:

  • Power Supply: 12 ~ 24 VDC |  90 ~ 240 VAC(50~60Hz)
  • Current Consumption:
    • Max 0.20A ±10%
    • Max. 0.06A ±10%
  • Buzzer sound level:
    • Standard type: 55~85±5dB
    • Horn type: 55~90±5dB
  • Material: Body: ABS
  • Ambient Temperature: -20 ~ 40 √É√§C
  • Storage Temperature: -20 ~ 70 √É√§C
  • Ambient humidity: 45 ~ 85% RH
  • Degree of Protection: Standard type: IP43, Horn type: IP54
  • Recommended wire size: UL1007/22AWG
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Menics

MW86N-FF-S3R

Signal Horn, Ø86mm, Wall Mount, 90-240VAC, Red Body, Adjustable Volume, 3 Sirens, Removable Horn Included, IP54 with Horn, IP43 without Horn

$88.00
Image coming soon

Menics

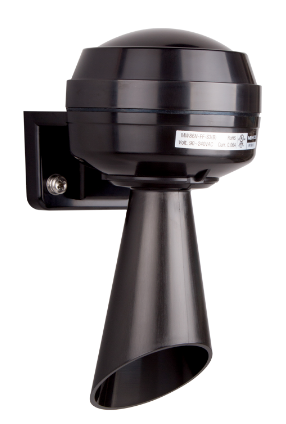

MW86N-00-S3B
