SFDL-MCA-M20

Name: SFDL-MCA-M20
Brand: Autonics
SKU: SFDL-MCA-M20
Price: 140 USD
Availability: InStock

Alt: SFD/SFDL Series

$140.00

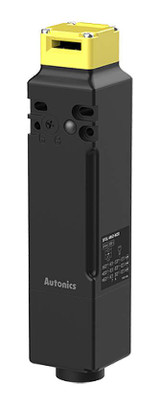

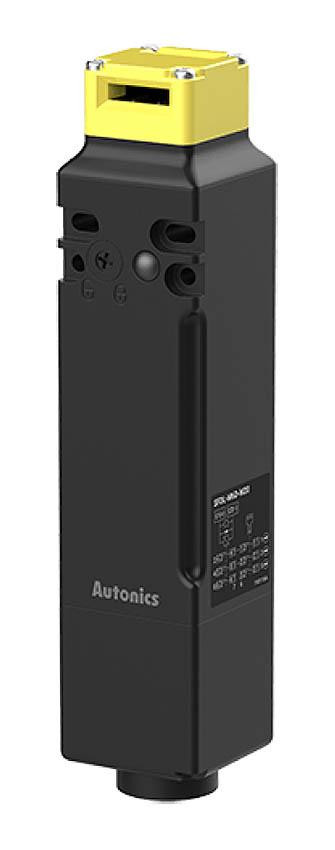

Safety Door Lock Switch, Mechanical Lock/Solenoid Release, 4-Contact (Not Connected), Lock: 1NC/1NO, Door: 1NC/1NO, M20 Gland Port Size, Terminal Type, IP67 (Except Head)

SKU:: SFDL-MCA-M20
Weight:: 0.20 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Build Your Complete VFD Solution

Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.

Description
Specifications
Downloads
Accessories

Description

The SFD series is a safety door switch that can detect the opening and closing of doors in machines.

The SFDL series is a safety door LOCK switch that can detect the opening and closing of doors in machines PLUS keep the door locked during potentially dangerous operations!

The head of either series can be rotated to change the insert direction of the operation key from 5 directions, with 6 available operation key types. Also, these door switches are available in terminal type and connector type models and the release keys are available in cross type and special types, making it easier for installation in diverse application settings.

Specifications

Series SFD/SFDL Series

Type of Safety Switch Hinged Door

Warranty 3 Years

Alternate Part Number SFD/SFDL Series

Weight 0.2000

The SFD series is a safety door switch that can detect the opening and closing of doors in machines.
The SFDL series is a safety door LOCK switch that can detect the opening and closing of doors in machines PLUS keep the door locked during potentially dangerous operations!
The head of either series can be rotated to change the insert direction of the operation key from 5 directions, with 6 available operation key types. Also, these door switches are
Available in terminal type and connector type models and the release keys are available in cross type and special types, making it easier for installation in diverse application settings.
