Takex
UM-T50DS
Photoelectric Sensor Set, Through Beam, NPN, Red LED, 500mm Range, Cable, Ultra Miniature
$96.05
**Tariff Update: Currently in 'Wait and See' Mode Instead of 'Panic and Overcharge' Mode!** Read the latest!

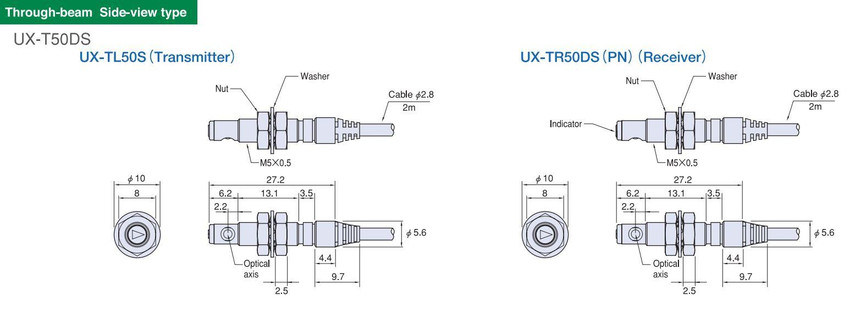

UX-T50DS
Alt: UX Series
$102.00
Photoelectric Sensor, Ultra Mini, Through Beam, Side View, 12-24VDC, 500mm Range, Red LED, NPN 80mA/30VDC, Dark-ON, IP67
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Sensor, Ultrasonic, Through Beam, NPN, Red LED, 500mm Range, Cable, Ultra Miniature
Specifications
Connection
w/Cable
Light Source
Infrared
NPN or PNP
NPN (Sink)
Light On/Dark On
Dark ON
Sensing Method
Diffuse Reflective
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67
Series
UX Series
Size
Rectangular
Warranty
1 Year
Alternate Part Number
UX Series
Weight
.1
Features Include:
- Installs in the same space as typical fiber sensors
- Side view thru-beam range to 500mm
- Head on thru-beam range to 1000mm
- Stainless steel construction for high durability
- Polysulfone lens resists harsh chemical environments
- Self-contained design - no external electronic requirement
