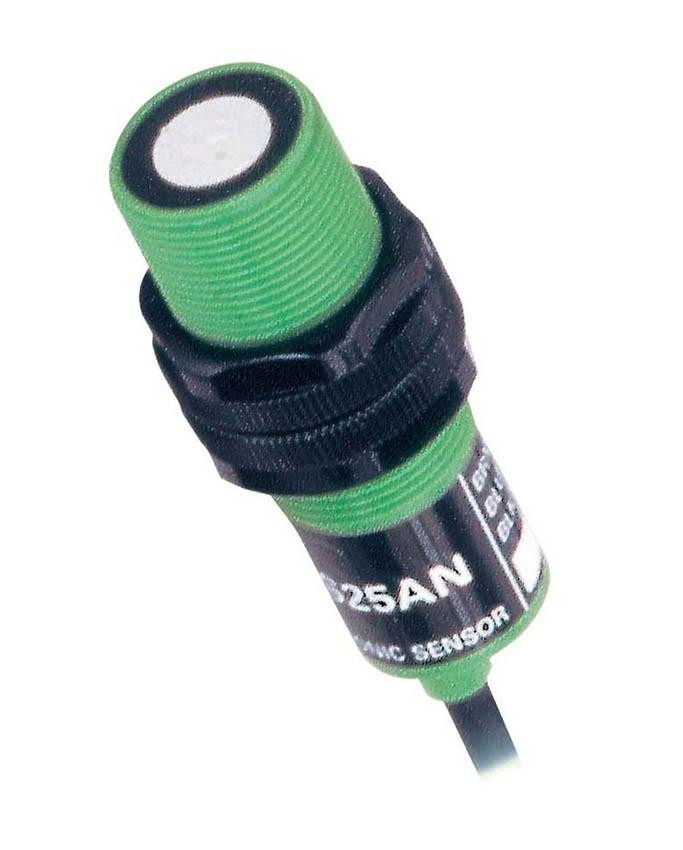

US-S25AN

Sensor, Ultrasonic, Reflective, Proportional Output, Analog Mode, 60/250mm Range

Features Include:

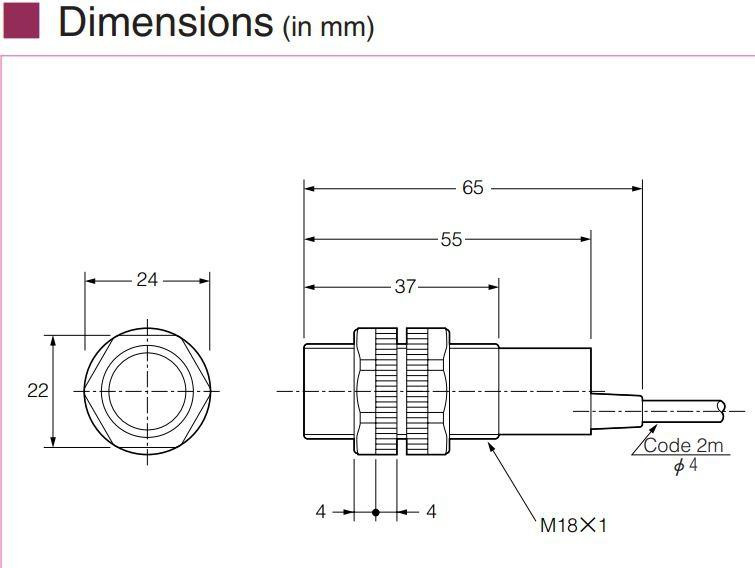

• Handy M18 cylinder
• Integrated amplifier for easy adjustment
• Easy alignment with sharp narrow view
• Low cost and versatile miniature ultrasonic sensor with analog output
• Detection Method: Ultrasonic reflective
• Detection Distance: 60 - 250mm
• Detection Object: 30 x 30 (sample object: 1 thick aluminum plate)
• Current Consumption: 25mA or less
• Minimum Resolution: 2 mm (with 80 mV ripple)
• Power Supply: 12-24V DC ±10‚àö√Ƭ¨‚à´‚àö√± / Ripple 10‚àö√Ƭ¨‚à´‚àö√± or less
• Indicator: Not provided
• Ultrasonic Frequency: 380kHz ±10kHz
• Response Time: 10 → 2 V: 30 ms or less / 2 → 10 V: 300 ms or less
• Output Mode: Voltage output in proportion to distance, 60mm:2.4V±0.5V, 50mm:10.0V±0.5V
• Connection: Attached cable (dia.4) 0.2 mm2 x 3 cores, 2 m (Black)
• Weight: approx. 65g

Material:

• Case/nut: Polycarbonate
• Detection side: Carbon calcium Silicone-Acrylic coating) conductive EPDM

Environmental Specifications:

• Ambient Temperature:-25° - +55°C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Ambient Wind Speed: 1m/s max.
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 500 m/s2 / 3 times each in 3 directions
