Available Now! 204535
Available Now! (1 in stock)
Pepperl+Fuchs

204535

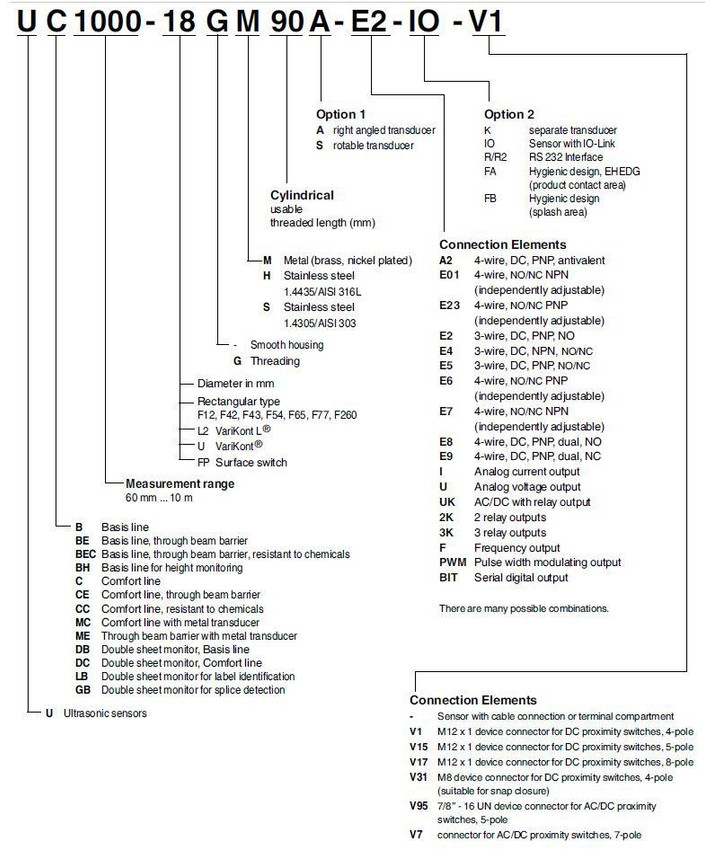

Alt: UB1000-18GM75-I-V15

$403.50

Ultrasonic Sensor

Weight:
0.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Sensor, Ultrasonic

Features Include:

Sensing Range

  • 70 - 1000 mm

Adjustment Range

  • 90 - 1000 mm

Dead Band

  • 0 - 70 mm

Standard Target Plate

  • 100 mm x 100 mm

Transducer Frequency

  • Approximately 255 kHz

Operating Voltage

  • 10 - 30 V DC, ripple 10 %SS

Input Type

  • 1 program input
    lower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB
    input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s

Output Type

  • 1 analog output 4 - 20 mA

Connection Type

  • Connector M12 x 1, 5-pin

Ambient Temperature

  • -25 - 70 °C (-13 - 158 °F)
