BUP-50-P
Autonics

BUP-50-P

$75.00

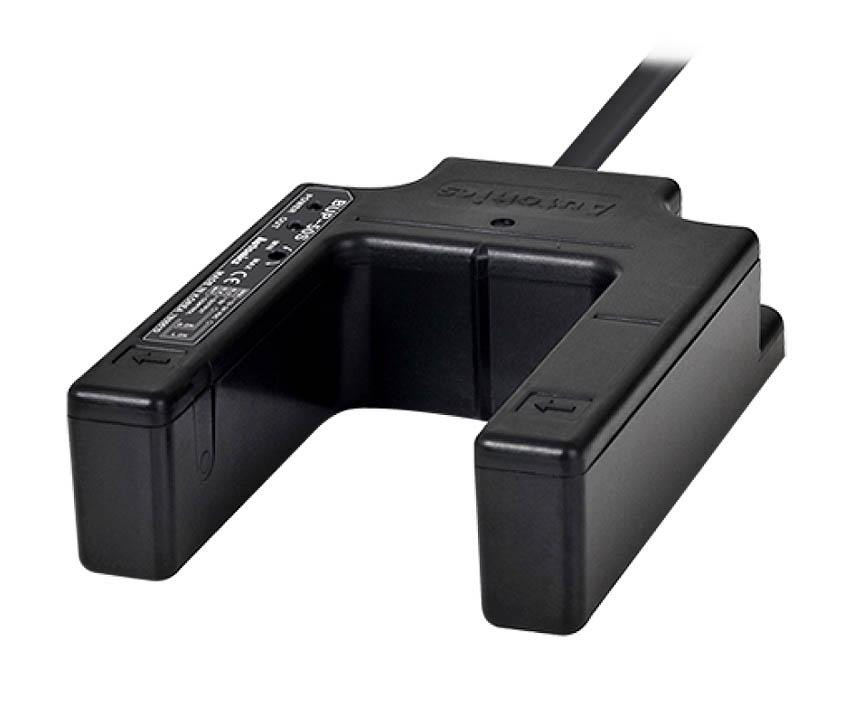

Sensor, Thru-Beam, U-Shape, 50mm, PNP, Plastic Case, 12-24VDC

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Sensor, Thru-Beam, U-Shape, 50mm, PNP, Plastic Case, 12-24VDC,

Features Include:

  • Sensing type: Through-beam type
  • Sensing Cannel: 1-channel
  • Sensing distance: 50mm
  • Sensing target: Opaquematerial of min. Ø4mm
  • Light source: Infrared LED(940nm)
  • Power supply: 12-24VDC ±10%(ripple P-P: max. 10%)
  • Operation mode: Light ON/Dark ON(set by control wire)
  • Control output: PNP open collector
  • Connection type: Cable type(Ø4, 2m)
  • Material Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
