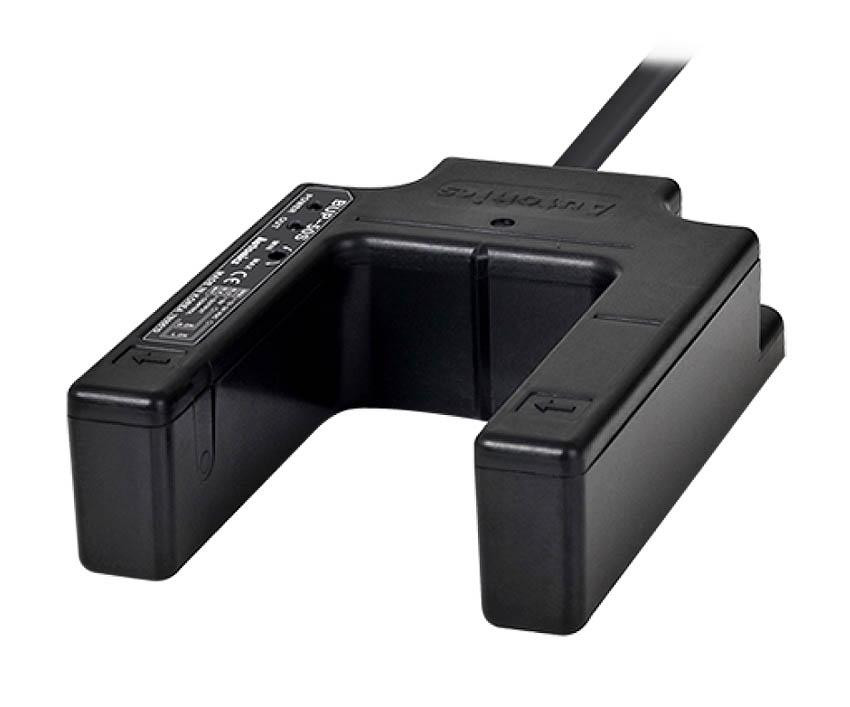

BUP-50S
Sensor, Photo, Plastic Case, Slot Style, Adj Sens, Light & Dark On, NPN Output, 12-24VDC
$81.00
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!

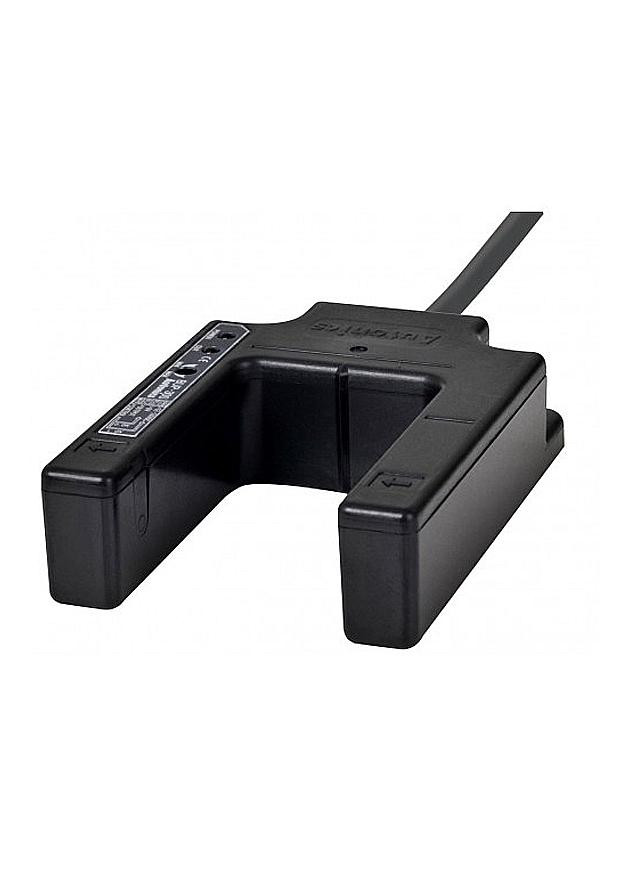

BUP-50
$75.00
Sensor, Thru-Beam, U-Shape, 50mm, NPN, Plastic Case, 12-24VDC
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Sensor, Thru-Beam, U-Shape, 50mm, NPN, Plastic Case, 12-24VDC,
Specifications
Connection
w/Cable
Light Source
Infrared
NPN or PNP
NPN (Sink)
Light On/Dark On
Light ON/Dark ON
Sensing Method
Through Beam
Type of Photoelectric
See Spec or N/A
All - Specific Ratings
IP66
Series
See Specs
Size
See Spec
Warranty
3 Years
Weight
0.5
Features Include:
- Sensing type: Through-beam type
- Sensing Cannel: 1-channel
- Sensing distance: 50mm
- Sensing target: Opaquematerial of min. Ø4mm
- Light source: Infrared LED(940nm)
- Power supply: 12-24VDC ±10%(ripple P-P: max. 10%)
- Operation mode: Light ON/Dark ON(set by control wire)
- Control output: NPN open collector
- Material Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
